Specifications: Nissan Xterra II (facelift 2008) 4.0 V6 (261 Hp) Automatic 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015

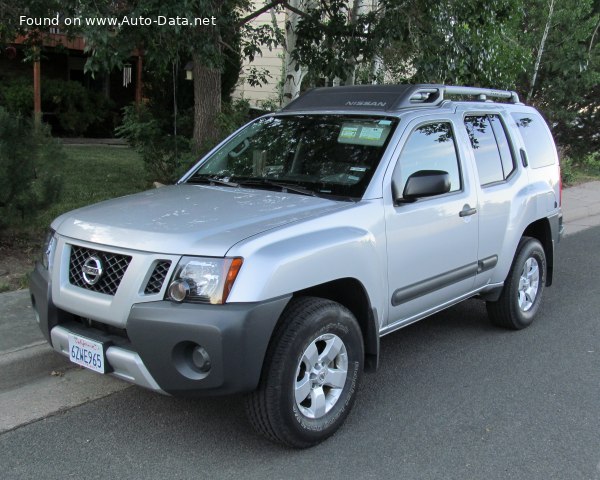

2009 Nissan Xterra II (facelift 2008) - Photo 1

Nissan Xterra II (facelift 2008) 4.0 V6 (261 Hp) Automatic – Full specifications
General information
Brand Nissan
Model Xterra
Generation Xterra II (facelift 2008)
Modification (Engine) 4.0 V6 (261 Hp) Automatic
Start of production 2008 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 14.7 l/100 km
16 US mpg
19.22 UK mpg
6.8 km/l
Fuel consumption (economy) – extra urban 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel consumption (economy) – combined 13.1 l/100 km
17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel Type Petrol (Gasoline)
Emission standard LEV2-ULEV
Weight-to-power ratio 7.2 kg/Hp, 138.7 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 202.4 Nm/tonne
Engine specs
Power 261 Hp @ 5600 rpm.
Power per litre 66 Hp/l
Torque 381 Nm @ 4000 rpm.
281.01 lb.-ft. @ 4000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VQ40DE
Engine displacement 3954 cm3
241.29 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 95.5 mm
3.76 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 9.7:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.1 l
5.39 US qt | 4.49 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.2 l
10.78 US qt | 8.97 UK qt

Space, Volume and weights
Kerb Weight 1882-1878 kg
4149.1 – 4140.28 lbs.
Trunk (boot) space – minimum 745 l
26.31 cu. ft.
Trunk (boot) space – maximum 1860 l
65.69 cu. ft.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Permitted trailer load with brakes (12%) 2268 kg
5000.08 lbs.
Dimensions
Length 4539 mm
178.7 in.
Width 1849 mm
72.8 in.
Height 1902 mm
74.88 in.
Wheelbase 2700 mm
106.3 in.
Front track 1570 mm
61.81 in.
Rear (Back) track 1570 mm
61.81 in.
Ride height (ground clearance) 208-231 mm
8.19 – 9.09 in.
Approach angle 30.5-32°
Departure angle 27.3-28.8°
Ramp-over (brakeover) angle 22.9-24.6°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Transverse stabilizer, Leaf spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 265/70 R16
Wheel rims size 7J x 16
