Specifications: Nissan Z (RZ34) 3.0 V6 (400 Hp) 2022, 2023, 2024, 2025

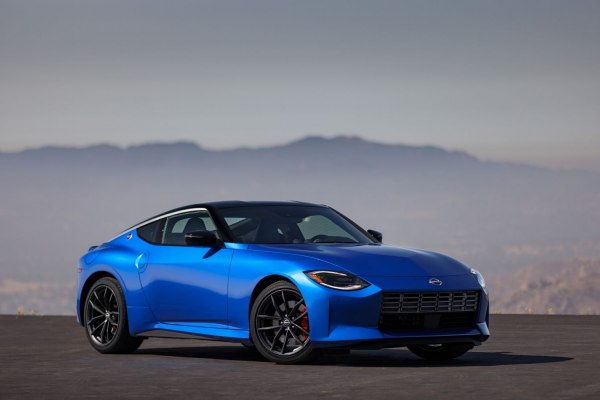

2023 Nissan Z (RZ34) - Photo 1

Nissan Z (RZ34) 3.0 V6 (400 Hp) – Full specifications
General information
Brand Nissan
Model Z
Generation Z (RZ34)
Modification (Engine) 3.0 V6 (400 Hp)
Start of production April, 2022 year
Powertrain Architecture Internal Combustion engine
Body type Coupe, Fastback
Seats 2
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Emission standard LEV2-LEV. Tier2-Bin5
Engine specs
Power 400 Hp @ 6400 rpm.
Power per litre 133.5 Hp/l
Torque 475 Nm @ 1600-5600 rpm.
350.34 lb.-ft. @ 1600-5600 rpm.
Maximum engine speed 6800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code VR30DDTT
Engine displacement 2997 cm3
182.89 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 10.3:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC, CVTCS
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.9 l
9.4 US qt | 7.83 UK qt

Dimensions
Length 4379 mm
172.4 in.
Width 1844 mm
72.6 in.
Height 1316 mm
51.81 in.
Wheelbase 2550 mm
100.39 in.
Front track 1565 mm
61.61 in.
Rear (Back) track 1595 mm
62.8 in.
Ride height (ground clearance) 122 mm
4.8 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link suspension, Transverse stabilizer
Front brakes Ventilated discs, 320×28 mm
Rear brakes Ventilated discs, 307×16 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/45 R18
Wheel rims size 9J x 18
