Specifications: Opel Agila II 1.3 CDTI (70 Hp) 2008, 2009, 2010

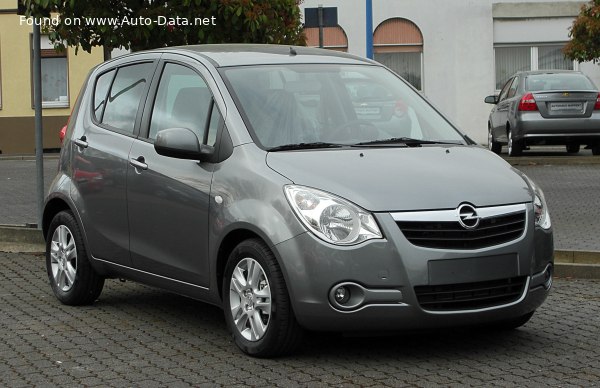

2008 Opel Agila II - Photo 1

Opel Agila II 1.3 CDTI (70 Hp) – Full specifications
General information
Brand Opel
Model Agila
Generation Agila II
Modification (Engine) 1.3 CDTI (70 Hp)
Start of production 2008 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.5 l/100 km
42.77 US mpg
51.36 UK mpg
18.18 km/l
Fuel consumption (economy) – extra urban 4 l/100 km
58.8 US mpg
70.62 UK mpg
25 km/l
Fuel consumption (economy) – combined 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.9 sec
Acceleration 0 – 62 mph 13.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.2 sec
Maximum speed 165 km/h
102.53 mph
Emission standard Euro 4
Weight-to-power ratio 15 kg/Hp, 66.7 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 161.9 Nm/tonne
Engine specs
Power 70 Hp @ 4000 rpm.
Power per litre 56.1 Hp/l
Torque 170 Nm @ 1750 rpm.
125.39 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code Z13DTJ
Engine displacement 1248 cm3
76.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 69.6 mm
2.74 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.1 l
3.28 US qt | 2.73 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.3 l
5.6 US qt | 4.66 UK qt

Space, Volume and weights
Kerb Weight 1050 kg
2314.85 lbs.
Max. weight 1485 kg
3273.86 lbs.
Max load 435 kg
959.01 lbs.
Trunk (boot) space – minimum 225 l
7.95 cu. ft.
Trunk (boot) space – maximum 660 l
23.31 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 3740 mm
147.24 in.
Width 1680 mm
66.14 in.
Height 1590 mm
62.6 in.
Wheelbase 2360 mm
92.91 in.
Front track 1470 mm
57.87 in.
Rear (Back) track 1480 mm
58.27 in.
Minimum turning circle (turning diameter) 9.6 m
31.5 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/60 R16
