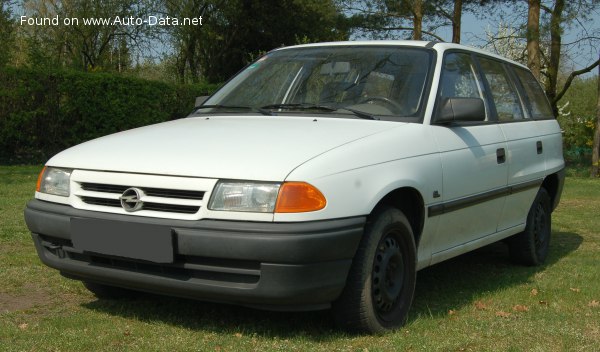

1992 Opel Astra F Caravan - Photo 1

Opel Astra F Caravan 1.4 Si (82 Hp) – Full specifications
General information
Brand Opel
Model Astra
Generation Astra F Caravan
Modification (Engine) 1.4 Si (82 Hp)
Start of production 1992 year
End of production 1994 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel consumption (economy) – extra urban 7.4 l/100 km
31.79 US mpg
38.17 UK mpg
13.51 km/l
Fuel consumption (economy) – combined 7.9 l/100 km
29.77 US mpg
35.76 UK mpg
12.66 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.5 sec
Acceleration 0 – 62 mph 13.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.8 sec
Maximum speed 170 km/h
105.63 mph
Weight-to-power ratio 12.3 kg/Hp, 81.6 Hp/tonne
Weight-to-torque ratio 8.8 kg/Nm, 113.4 Nm/tonne
Engine specs
Power 82 Hp @ 5800 rpm.
Power per litre 59 Hp/l
Torque 114 Nm @ 3400 rpm.
84.08 lb.-ft. @ 3400 rpm.
Engine layout Front, Transverse
Engine Model/Code C14SE
Engine displacement 1389 cm3
84.76 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77.6 mm
3.06 in.
Piston Stroke 73.4 mm
2.89 in.
Compression ratio 9.8:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.8 l
6.13 US qt | 5.1 UK qt

Space, Volume and weights
Kerb Weight 1005 kg
2215.65 lbs.
Max. weight 1515 kg
3340 lbs.
Max load 510 kg
1124.36 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 1630 l
57.56 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4278 mm
168.43 in.
Width 1688 mm
66.46 in.
Width including mirrors 1795 mm
70.67 in.
Height 1475 mm
58.07 in.
Wheelbase 2517 mm
99.09 in.
Front track 1430 mm
56.3 in.
Rear (Back) track 1429 mm
56.26 in.
Ride height (ground clearance) 135 mm
5.31 in.
Drag coefficient (Cd) 0.34
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Wishbone
Rear suspension Suspension with traction connecting levers
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/70 R13 82T; 175/65 R14 82T
Wheel rims size 5.5J x 13 ET49; 5.5J x 14 ET49
