Specifications: Opel Astra F Classic 1.6i (71 Hp) Automatic 1993, 1994

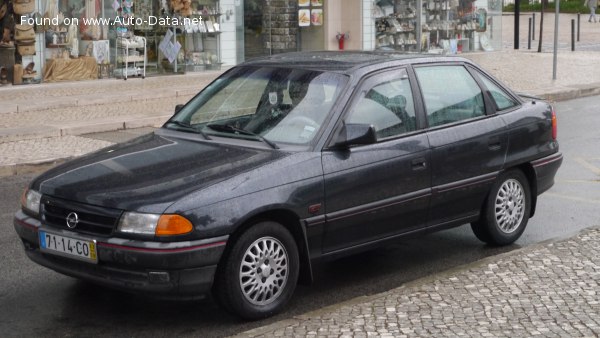

1992 Opel Astra F Classic - Photo 1

Opel Astra F Classic 1.6i (71 Hp) Automatic – Full specifications
General information
Brand Opel
Model Astra
Generation Astra F Classic
Modification (Engine) 1.6i (71 Hp) Automatic
Start of production May, 1993 year
End of production July, 1994 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 9.3 l/100 km
25.29 US mpg
30.37 UK mpg
10.75 km/l
Fuel consumption (economy) – extra urban 6.5 l/100 km
36.19 US mpg
43.46 UK mpg
15.38 km/l
Fuel consumption (economy) – combined 8.3 l/100 km
28.34 US mpg
34.03 UK mpg
12.05 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 17 sec
Acceleration 0 – 62 mph 17 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 16.2 sec
Maximum speed 163 km/h
101.28 mph
Weight-to-power ratio 14.6 kg/Hp, 68.3 Hp/tonne
Weight-to-torque ratio 8.1 kg/Nm, 123.1 Nm/tonne
Engine specs
Power 71 Hp @ 5000 rpm.
Power per litre 44.4 Hp/l
Torque 128 Nm @ 2800 rpm.
94.41 lb.-ft. @ 2800 rpm.
Engine layout Front, Transverse
Engine Model/Code X16SZ
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 81.5 mm
3.21 in.
Compression ratio 10:1
Number of valves per cylinder 2
Fuel injection system Single-point injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l
5.92 US qt | 4.93 UK qt

Space, Volume and weights
Kerb Weight 1040 kg
2292.81 lbs.
Max. weight 1515 kg
3340 lbs.
Max load 475 kg
1047.2 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 1200 l
42.38 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4239 mm
166.89 in.
Width 1688 mm
66.46 in.
Width including mirrors 1795 mm
70.67 in.
Height 1410 mm
55.51 in.
Wheelbase 2517 mm
99.09 in.
Front track 1430 mm
56.3 in.
Rear (Back) track 1429 mm
56.26 in.
Ride height (ground clearance) 135 mm
5.31 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Suspension with traction connecting levers
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 175/70 R13 82T
Wheel rims size 5.5J x 13 ET49
