Specifications: Opel Astra G Classic (facelift 2002) 2.2 DTI (125 Hp) 2002, 2003, 2004

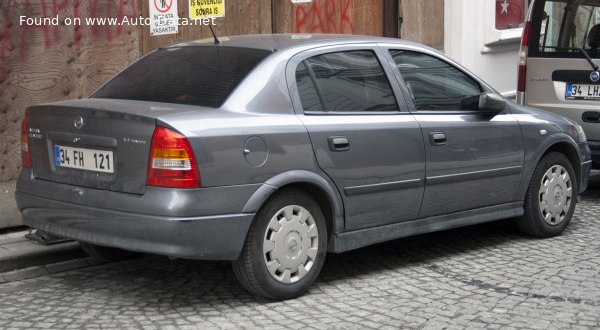

2002 Opel Astra G Classic (facelift 2002) - Photo 1

Opel Astra G Classic (facelift 2002) 2.2 DTI (125 Hp) – Full specifications
General information
Brand Opel
Model Astra
Generation Astra G Classic (facelift 2002)
Modification (Engine) 2.2 DTI (125 Hp)
Start of production July, 2002 year
End of production February, 2004 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 8.7 l/100 km
27.04 US mpg
32.47 UK mpg
11.49 km/l
Fuel consumption (economy) – extra urban 4.9 l/100 km
48 US mpg
57.65 UK mpg
20.41 km/l
CO2 emissions 167 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 9.9 sec
Acceleration 0 – 62 mph 9.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.4 sec
Maximum speed 203 km/h
126.14 mph
Weight-to-power ratio 10 kg/Hp, 99.6 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 223.1 Nm/tonne
Engine specs
Power 125 Hp @ 4000 rpm.
Power per litre 57.6 Hp/l
Torque 280 Nm @ 1500 rpm.
206.52 lb.-ft. @ 1500 rpm.
Engine layout Front, Transverse
Engine Model/Code Y22DTR
Engine displacement 2171 cm3
132.48 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 98 mm
3.86 in.
Compression ratio 18.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 5.5 l
5.81 US qt | 4.84 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.9 l
8.35 US qt | 6.95 UK qt

Space, Volume and weights
Kerb Weight 1255 kg
2766.8 lbs.
Max. weight 1800 kg
3968.32 lbs.
Max load 545 kg
1201.52 lbs.
Trunk (boot) space – minimum 460 l
16.24 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4252 mm
167.4 in.
Width 1709 mm
67.28 in.
Width including mirrors 1967 mm
77.44 in.
Height 1425 mm
56.1 in.
Wheelbase 2606 mm
102.6 in.
Front track 1484 mm
58.43 in.
Rear (Back) track 1460 mm
57.48 in.
Front overhang 791 mm
31.14 in.
Rear overhang 855 mm
33.66 in.
Ride height (ground clearance) 130 mm
5.12 in.
Drag coefficient (Cd) 0.29
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/60 R15
Wheel rims size 15
