Specifications: Opel Astra H 1.6i 16V (105 Hp) 2004, 2005, 2006

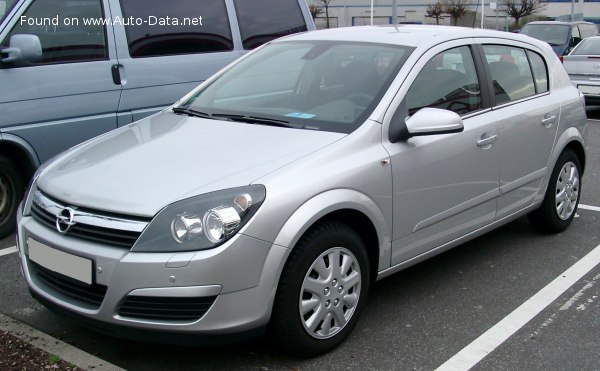

2004 Opel Astra H - Photo 1

Opel Astra H 1.6i 16V (105 Hp) – Full specifications
General information
Brand Opel
Model Astra
Generation Astra H
Modification (Engine) 1.6i 16V (105 Hp)
Start of production 2004 year
End of production 2006 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
Fuel consumption (economy) – extra urban 5.5 l/100 km
42.77 US mpg
51.36 UK mpg
18.18 km/l
Fuel consumption (economy) – combined 6.6 l/100 km
35.64 US mpg
42.8 UK mpg
15.15 km/l
CO2 emissions 156 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.3 sec
Acceleration 0 – 62 mph 12.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.7 sec
Maximum speed 185 km/h
114.95 mph
Emission standard Euro 4
Weight-to-power ratio 11.1 kg/Hp, 90.1 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 128.8 Nm/tonne
Engine specs
Power 105 Hp @ 6000 rpm.
Power per litre 65.7 Hp/l
Torque 150 Nm @ 3900 rpm.
110.63 lb.-ft. @ 3900 rpm.
Engine layout Front, Transverse
Engine Model/Code Z16XEP, Z16XE1
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 81.5 mm
3.21 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.1 l
6.45 US qt | 5.37 UK qt

Space, Volume and weights
Kerb Weight 1165 kg
2568.39 lbs.
Max. weight 1740 kg
3836.04 lbs.
Max load 575 kg
1267.66 lbs.
Trunk (boot) space – minimum 380 l
13.42 cu. ft.
Trunk (boot) space – maximum 1330 l
46.97 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4249 mm
167.28 in.
Width 1753 mm
69.02 in.
Width including mirrors 2033 mm
80.04 in.
Height 1467 mm
57.76 in.
Wheelbase 2614 mm
102.91 in.
Front track 1488 mm
58.58 in.
Rear (Back) track 1488 mm
58.58 in.
Front overhang 871 mm
34.29 in.
Rear overhang 764 mm
30.08 in.
Ride height (ground clearance) 160 mm
6.3 in.
Drag coefficient (Cd) 0.31
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Spring Strut
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/65 R15
Wheel rims size 6.5J x 15
