Specifications: Opel Astra H Caravan (facelift 2007) 2.0 Turbo ECOTEC (200 Hp) 2007, 2008, 2009, 2010

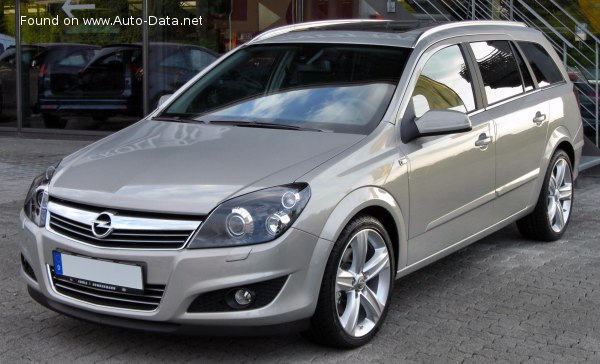

2007 Opel Astra H Caravan (facelift 2007) - Photo 1

Opel Astra H Caravan (facelift 2007) 2.0 Turbo ECOTEC (200 Hp) – Full specifications
General information
Brand Opel
Model Astra
Generation Astra H Caravan (facelift 2007)
Modification (Engine) 2.0 Turbo ECOTEC (200 Hp)
Start of production 2007 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 13.2 l/100 km
17.82 US mpg
21.4 UK mpg
7.58 km/l
Fuel consumption (economy) – extra urban (NEDC) 7.2 l/100 km
32.67 US mpg
39.23 UK mpg
13.89 km/l
Fuel consumption (economy) – combined (NEDC) 9.4 l/100 km
25.02 US mpg
30.05 UK mpg
10.64 km/l
CO2 emissions (NEDC) 226 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.4 sec
Acceleration 0 – 62 mph 8.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8 sec
Maximum speed 230 km/h
142.92 mph
Emission standard Euro 4
Weight-to-power ratio 6.8 kg/Hp, 148.1 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 194.1 Nm/tonne
Engine specs
Power 200 Hp @ 5400 rpm.
Power per litre 100.1 Hp/l
Torque 262 Nm @ 4200 rpm.
193.24 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code Z20LER
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 8.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.7 l
8.14 US qt | 6.78 UK qt

Space, Volume and weights
Kerb Weight 1350 kg
2976.24 lbs.
Max. weight 1950 kg
4299.01 lbs.
Max load 600 kg
1322.77 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 1590 l
56.15 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Max. roof load 100 kg
220.46 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 710 kg
1565.28 lbs.
Dimensions
Length 4515 mm
177.76 in.
Width 1753 mm
69.02 in.
Width with mirrors folded 1804 mm
71.02 in.
Width including mirrors 2033 mm
80.04 in.
Height 1500 mm
59.06 in.
Wheelbase 2703 mm
106.42 in.
Front track 1488 mm
58.58 in.
Rear (Back) track 1488 mm
58.58 in.
Front overhang 871 mm
34.29 in.
Rear overhang 941 mm
37.05 in.
Minimum turning circle (turning diameter) 11.5 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 225/45 R17; 225/40 R18
Wheel rims size 6.5J x 16; 7J x 17; 7.5J x 18
