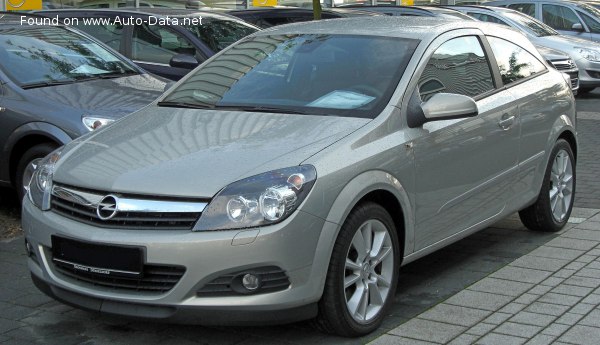

2005 Opel Astra H GTC - Photo 1

Opel Astra H GTC 1.4i 16V (90 Hp) – Full specifications
General information
Brand Opel
Model Astra
Generation Astra H GTC
Modification (Engine) 1.4i 16V (90 Hp)
Start of production March, 2005 year
End of production October, 2006 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 8.2 l/100 km
28.68 US mpg
34.45 UK mpg
12.2 km/l
Fuel consumption (economy) – extra urban 5.2 l/100 km
45.23 US mpg
54.32 UK mpg
19.23 km/l
Fuel consumption (economy) – combined 6.3 l/100 km
37.34 US mpg
44.84 UK mpg
15.87 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.6 sec
Acceleration 0 – 62 mph 13.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.9 sec
Maximum speed 180 km/h
111.85 mph
Weight-to-power ratio 12.3 kg/Hp, 81.1 Hp/tonne
Weight-to-torque ratio 8.9 kg/Nm, 112.6 Nm/tonne
Engine specs
Power 90 Hp @ 5600 rpm.
Power per litre 66 Hp/l
Torque 125 Nm @ 4000 rpm.
92.2 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code Z14XEP
Engine displacement 1364 cm3
83.24 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 73.4 mm
2.89 in.
Piston Stroke 80.6 mm
3.17 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l
5.92 US qt | 4.93 UK qt

Space, Volume and weights
Kerb Weight 1110 kg
2447.13 lbs.
Max. weight 1685 kg
3714.79 lbs.
Max load 575 kg
1267.66 lbs.
Trunk (boot) space – minimum 380 l
13.42 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4290 mm
168.9 in.
Width 1753 mm
69.02 in.
Width including mirrors 2033 mm
80.04 in.
Height 1415 mm
55.71 in.
Wheelbase 2614 mm
102.91 in.
Front track 1488 mm
58.58 in.
Rear (Back) track 1488 mm
58.58 in.
Front overhang 910 mm
35.83 in.
Rear overhang 766 mm
30.16 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drag coefficient (Cd) 0.32
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Spring Strut
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16
Wheel rims size 6.5J x 16
