Specifications: Opel Astra H Sedan 1.3 CDTI (90 Hp) 2007, 2008, 2009, 2010

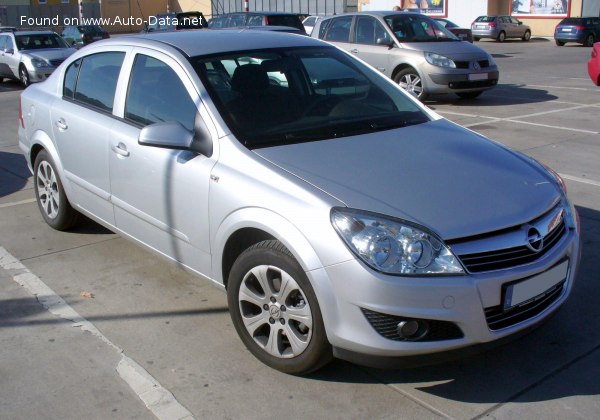

2007 Opel Astra H Sedan - Photo 1

Opel Astra H Sedan 1.3 CDTI (90 Hp) – Full specifications
General information
Brand Opel
Model Astra
Generation Astra H Sedan
Modification (Engine) 1.3 CDTI (90 Hp)
Start of production 2007 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 6.5 l/100 km
36.19 US mpg
43.46 UK mpg
15.38 km/l
Fuel consumption (economy) – extra urban 4.3 l/100 km
54.7 US mpg
65.69 UK mpg
23.26 km/l
Fuel consumption (economy) – combined 5.1 l/100 km
46.12 US mpg
55.39 UK mpg
19.61 km/l
CO2 emissions 137 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.7 sec
Acceleration 0 – 62 mph 13.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13 sec
Maximum speed 172 km/h
106.88 mph
Emission standard Euro 4
Engine specs
Power 90 Hp @ 4000 rpm.
Power per litre 72.1 Hp/l
Torque 200 Nm @ 1750 rpm.
147.51 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code Z13DTH
Engine displacement 1248 cm3
76.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 69.6 mm
2.74 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 18.4:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.1 l
3.28 US qt | 2.73 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.8 l
7.19 US qt | 5.98 UK qt

Space, Volume and weights
Trunk (boot) space – maximum 490 l
17.3 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4587 mm
180.59 in.
Width 1753 mm
69.02 in.
Width with mirrors folded 1804 mm
71.02 in.
Width including mirrors 2033 mm
80.04 in.
Height 1458 mm
57.4 in.
Wheelbase 2703 mm
106.42 in.
Front track 1488 mm
58.58 in.
Rear (Back) track 1479 mm
58.23 in.
Ride height (ground clearance) 170 mm
6.69 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.50 m
37.73 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205 / 55 R16
Wheel rims size 16
