Specifications: Opel Astra H TwinTop 1.6i 16V Turbo (180 Hp) 2006, 2007, 2008, 2009, 2010

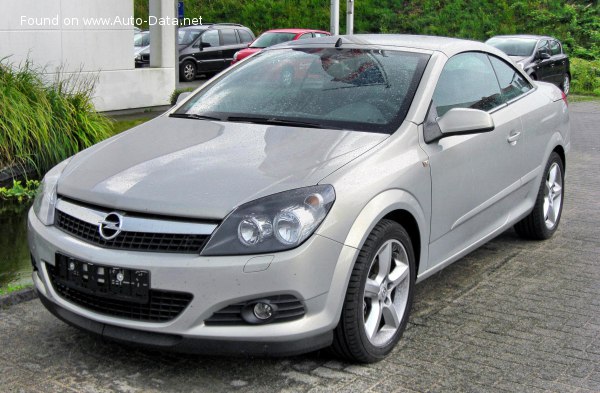

2006 Opel Astra H TwinTop - Photo 1

Opel Astra H TwinTop 1.6i 16V Turbo (180 Hp) – Full specifications
General information
Brand Opel
Model Astra
Generation Astra H TwinTop
Modification (Engine) 1.6i 16V Turbo (180 Hp)
Start of production November, 2006 year
End of production June, 2010 year
Powertrain Architecture Internal Combustion engine
Body type Coupe – Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 13 l/100 km
18.09 US mpg
21.73 UK mpg
7.69 km/l
Fuel consumption (economy) – extra urban 7 l/100 km
33.6 US mpg
40.35 UK mpg
14.29 km/l
Fuel consumption (economy) – combined 9.2 l/100 km
25.57 US mpg
30.7 UK mpg
10.87 km/l
CO2 emissions 221 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.5 sec
Acceleration 0 – 62 mph 9.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9 sec
Maximum speed 224 km/h
139.19 mph
Weight-to-power ratio 8.4 kg/Hp, 119.6 Hp/tonne
Weight-to-torque ratio 6.5 kg/Nm, 152.8 Nm/tonne
Engine specs
Power 180 Hp @ 5500 rpm.
Power per litre 112.6 Hp/l
Torque 230 Nm @ 1980 rpm.
169.64 lb.-ft. @ 1980 rpm.
Engine layout Front, Transverse
Engine Model/Code Z16LET
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 81.5 mm
3.21 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.9 l
6.23 US qt | 5.19 UK qt

Space, Volume and weights
Kerb Weight 1505 kg
3317.96 lbs.
Max. weight 1975 kg
4354.13 lbs.
Max load 470 kg
1036.17 lbs.
Trunk (boot) space – minimum 205 l
7.24 cu. ft.
Trunk (boot) space – maximum 440 l
15.54 cu. ft.
Fuel tank capacity 52 l
13.74 US gal | 11.44 UK gal
Dimensions
Length 4476 mm
176.22 in.
Width 1759 mm
69.25 in.
Width with mirrors folded 1831 mm
72.09 in.
Width including mirrors 2021 mm
79.57 in.
Height 1411 mm
55.55 in.
Wheelbase 2614 mm
102.91 in.
Front track 1488 mm
58.58 in.
Rear (Back) track 1481 mm
58.31 in.
Front overhang 909 mm
35.79 in.
Rear overhang 953 mm
37.52 in.
Ride height (ground clearance) 122 mm
4.8 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Coil spring
Rear suspension Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/45 R17
Wheel rims size 17
