Specifications: Opel Astra J (facelift 2012) 1.7 CDTI (110 Hp) Ecotec 2012, 2013, 2014

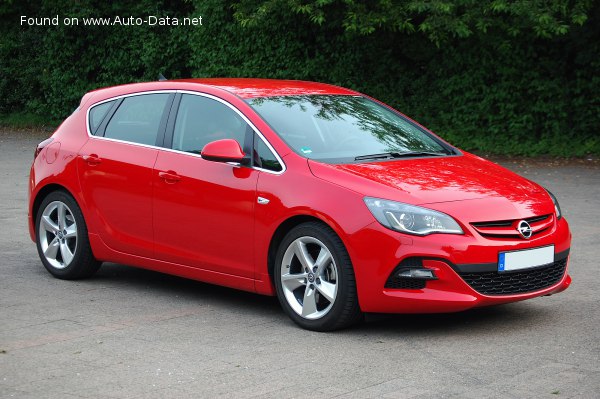

2012 Opel Astra J (facelift 2012) - Photo 1

Opel Astra J (facelift 2012) 1.7 CDTI (110 Hp) Ecotec – Full specifications
General information
Brand Opel
Model Astra
Generation Astra J (facelift 2012)
Modification (Engine) 1.7 CDTI (110 Hp) Ecotec
Start of production 2012 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel consumption (economy) – extra urban 4 l/100 km
58.8 US mpg
70.62 UK mpg
25 km/l
Fuel consumption (economy) – combined 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
CO2 emissions 119 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.3 sec
Acceleration 0 – 62 mph 12.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.7 sec
Maximum speed 186 km/h
115.58 mph
Emission standard Euro 5
Weight-to-power ratio 12.5 kg/Hp, 80.3 Hp/tonne
Weight-to-torque ratio 4.9 kg/Nm, 204.4 Nm/tonne
Engine specs
Power 110 Hp @ 4000 rpm.
Power per litre 65.2 Hp/l
Torque 280 Nm @ 1750-2500 rpm.
206.52 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code A17DTC
Engine displacement 1686 cm3
102.89 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 86 mm
3.39 in.
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5.4 l
5.71 US qt | 4.75 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.1 l
7.5 US qt | 6.25 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1370 kg
3020.33 lbs.
Max. weight 1940 kg
4276.97 lbs.
Max load 570 kg
1256.63 lbs.
Trunk (boot) space – minimum 370 l
13.07 cu. ft.
Trunk (boot) space – maximum 1235 l
43.61 cu. ft.
Fuel tank capacity 56 l
14.79 US gal | 12.32 UK gal
Max. roof load 75 kg
165.35 lbs.
Dimensions
Length 4419 mm
173.98 in.
Width 1814 mm
71.42 in.
Width with mirrors folded 1831 mm
72.09 in.
Width including mirrors 2013 mm
79.25 in.
Height 1510 mm
59.45 in.
Wheelbase 2685 mm
105.71 in.
Front track 1541 mm
60.67 in.
Rear (Back) track 1551 mm
61.06 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/60 R16
Wheel rims size 16
