Specifications: Opel Astra J Sports Tourer 1.4 (100 Hp) 2010, 2011, 2012

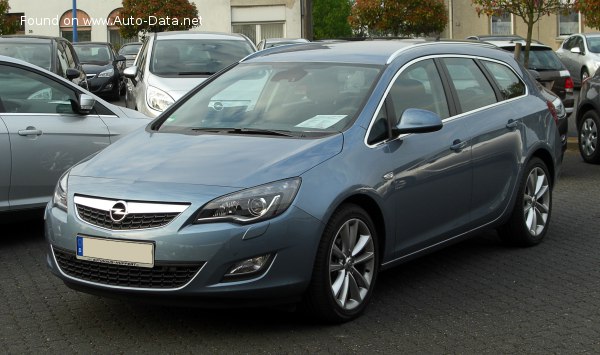

2010 Opel Astra J Sports Tourer - Photo 1

Opel Astra J Sports Tourer 1.4 (100 Hp) – Full specifications
General information
Brand Opel
Model Astra
Generation Astra J Sports Tourer
Modification (Engine) 1.4 (100 Hp)
Start of production 2010 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 7.6 l/100 km
30.95 US mpg
37.17 UK mpg
13.16 km/l
Fuel consumption (economy) – extra urban 4.9 l/100 km
48 US mpg
57.65 UK mpg
20.41 km/l
Fuel consumption (economy) – combined 5.9 l/100 km
39.87 US mpg
47.88 UK mpg
16.95 km/l
CO2 emissions 139 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.5 sec
Acceleration 0 – 62 mph 14.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.8 sec
Maximum speed 175 km/h
108.74 mph
Emission standard Euro 5
Weight-to-power ratio 13.9 kg/Hp, 71.8 Hp/tonne
Weight-to-torque ratio 7 kg/Nm, 143.6 Nm/tonne
Engine specs
Power 100 Hp @ 6000 rpm.
Power per litre 71.5 Hp/l
Torque 200 Nm @ 1850-4900 rpm.
147.51 lb.-ft. @ 1850-4900 rpm.
Engine layout Front, Transverse
Engine Model/Code A14XER
Engine displacement 1398 cm3
85.31 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 73.4 mm
2.89 in.
Piston Stroke 82.6 mm
3.25 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.75 l
3.96 US qt | 3.3 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.2 l
6.55 US qt | 5.46 UK qt

Space, Volume and weights
Kerb Weight 1393 kg
3071.04 lbs.
Max. weight 1960 kg
4321.06 lbs.
Max load 567 kg
1250.02 lbs.
Trunk (boot) space – minimum 550 l
19.42 cu. ft.
Trunk (boot) space – maximum 1550 l
54.74 cu. ft.
Fuel tank capacity 56 l
14.79 US gal | 12.32 UK gal
Dimensions
Length 4698 mm
184.96 in.
Width 1814 mm
71.42 in.
Width including mirrors 2013 mm
79.25 in.
Height 1535 mm
60.43 in.
Wheelbase 2685 mm
105.71 in.
Front track 1544 mm
60.79 in.
Rear (Back) track 1558 mm
61.34 in.
Front overhang 974 mm
38.35 in.
Rear overhang 1039 mm
40.91 in.
Ride height (ground clearance) 117 mm
4.61 in.
Drag coefficient (Cd) 0.33
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/50 R17
Wheel rims size 17
