Specifications: Opel Astra L Sports Tourer 1.6 Turbo (196 Hp) Plug-in Hybrid eDCT 2025

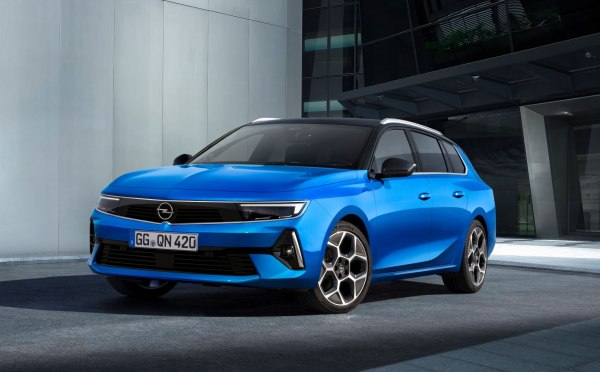

2022 Opel Astra L Sports Tourer - Photo 1

Opel Astra L Sports Tourer 1.6 Turbo (196 Hp) Plug-in Hybrid eDCT – Full specifications
General information
Brand Opel
Model Astra
Generation Astra L Sports Tourer
Modification (Engine) 1.6 Turbo (196 Hp) Plug-in Hybrid eDCT
Start of production July, 2025 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 2.3-5.6 l/100 km
102.27 – 42 US mpg
122.82 – 50.44 UK mpg
43.48 – 17.86 km/l
CO2 emissions (WLTP) 51-54 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 7.7 sec
Acceleration 0 – 62 mph 7.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.3 sec
Maximum speed 225 km/h
139.81 mph
Emission standard Euro 6e
Weight-to-power ratio 8.5 kg/Hp, 118 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 216.7 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 17.2 kWh
Battery technology Lithium-ion (Li-Ion)
All-electric range (WLTP) 82 km
50.95 mi
Average Energy consumption (WLTP) 12.9-13.1 kWh/100 km

20.76 – 21.08 kWh/100 mi
162 – 160 MPGe
7.8 – 7.6 km/kWh
4.8 – 4.7 mi/kWh
Max speed (electric) 135 km/h

83.89 mph
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 125 Hp
Electric motor Torque 118 Nm

87.03 lb.-ft.
Electric motor location Between the combustion engine and the transmission
System power 196 Hp
System torque 360 Nm
265.52 lb.-ft.
Internal combustion engine specs
Power 150 Hp @ 5500 rpm.
Power per litre 93.9 Hp/l
Torque 250 Nm @ 1750 rpm.
184.39 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code EP6FADTXHPE
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.8 mm
3.38 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1661 kg
3661.88 lbs.
Max. weight 2170 kg
4784.03 lbs.
Max load 509 kg
1122.15 lbs.
Fuel tank capacity 42 l
11.1 US gal | 9.24 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1330 kg
2932.15 lbs.
Permitted trailer load without brakes 600 kg
1322.77 lbs.
Permitted towbar download 75 kg
165.35 lbs.
Dimensions
Length 4374 mm
172.2 in.
Width 1860 mm
73.23 in.
Width including mirrors 2062 mm
81.18 in.
Height 1442-1472 mm
56.77 – 57.95 in.
Wheelbase 2675 mm
105.31 in.
Front track 1551-1559 mm
61.06 – 61.38 in.
Rear (Back) track 1546-1554 mm
60.87 – 61.18 in.
Front overhang 906 mm
35.67 in.
Rear overhang 793 mm
31.22 in.
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission eDCT
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/45 R17; 225/40 R18
Wheel rims size 17; 18
