Specifications: Opel Calibra 2.0 Turbo (204 Hp) 4×4 1992, 1993, 1994

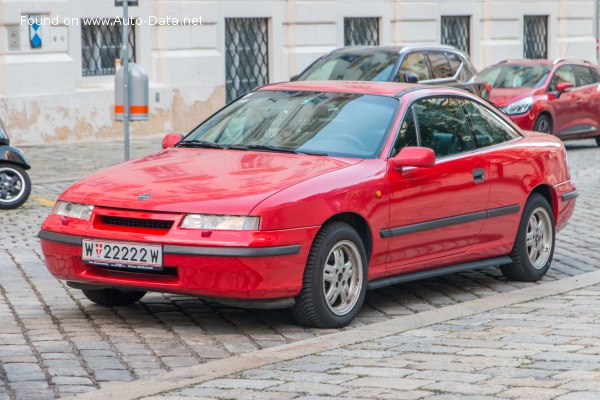

1990 Opel Calibra - Photo 1

Opel Calibra 2.0 Turbo (204 Hp) 4×4 – Full specifications
General information
Brand Opel
Model Calibra
Generation Calibra
Modification (Engine) 2.0 Turbo (204 Hp) 4×4
Start of production March, 1992 year
End of production 1994 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 12.3 l/100 km
19.12 US mpg
22.97 UK mpg
8.13 km/l
Fuel consumption (economy) – extra urban 6.8 l/100 km
34.59 US mpg
41.54 UK mpg
14.71 km/l
Fuel consumption (economy) – combined 8.5 l/100 km
27.67 US mpg
33.23 UK mpg
11.76 km/l
CO2 emissions 212 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 6.8 sec
Acceleration 0 – 62 mph 6.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 6.5 sec
Maximum speed 245 km/h
152.24 mph
Weight-to-power ratio 6.3 kg/Hp, 158.8 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 218.7 Nm/tonne
Engine specs
Power 204 Hp @ 5600 rpm.
Power per litre 102.1 Hp/l
Torque 281 Nm @ 2400 rpm.
207.25 lb.-ft. @ 2400 rpm.
Engine layout Front, Transverse
Engine Model/Code C20LET
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 9:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Turbocharger
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.2 l
7.61 US qt | 6.34 UK qt

Space, Volume and weights
Kerb Weight 1285 kg
2832.94 lbs.
Max. weight 1705 kg
3758.88 lbs.
Max load 420 kg
925.94 lbs.
Trunk (boot) space – minimum 300 l
10.59 cu. ft.
Trunk (boot) space – maximum 980 l
34.61 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Dimensions
Length 4492 mm
176.85 in.
Width 1688 mm
66.46 in.
Height 1320 mm
51.97 in.
Wheelbase 2600 mm
102.36 in.
Front track 1426 mm
56.14 in.
Rear (Back) track 1446 mm
56.93 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drag coefficient (Cd) 0.26
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/50 R16
Wheel rims size 16
