Specifications: Opel Calibra (facelift 1994) 2.0 8V (115 Hp) Automatic 1994, 1995, 1996

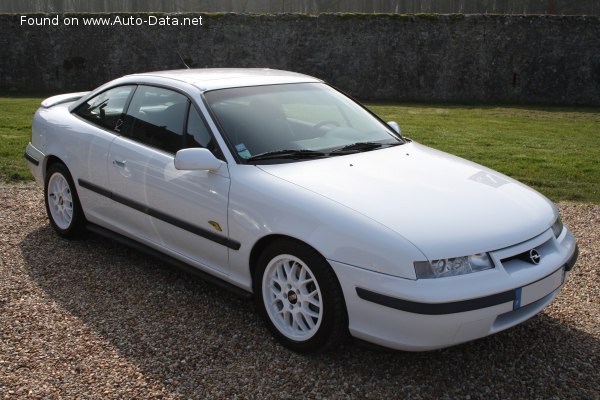

1994 Opel Calibra (facelift 1994) - Photo 1

Opel Calibra (facelift 1994) 2.0 8V (115 Hp) Automatic – Full specifications
General information
Brand Opel
Model Calibra
Generation Calibra (facelift 1994)
Modification (Engine) 2.0 8V (115 Hp) Automatic
Start of production 1994 year
End of production 1996 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel consumption (economy) – extra urban 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
Fuel consumption (economy) – combined 8.1 l/100 km
29.04 US mpg
34.87 UK mpg
12.35 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12 sec
Acceleration 0 – 62 mph 12 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.4 sec
Maximum speed 200 km/h
124.27 mph
Weight-to-power ratio 10.8 kg/Hp, 92.4 Hp/tonne
Weight-to-torque ratio 7.3 kg/Nm, 136.5 Nm/tonne
Engine specs
Power 115 Hp @ 5200 rpm.
Power per litre 57.6 Hp/l
Torque 170 Nm @ 2600 rpm.
125.39 lb.-ft. @ 2600 rpm.
Engine layout Front, Transverse
Engine Model/Code C20NE
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 86 mm
3.39 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 9.2:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.4 l
7.82 US qt | 6.51 UK qt

Space, Volume and weights
Kerb Weight 1245 kg
2744.76 lbs.
Max. weight 1665 kg
3670.7 lbs.
Max load 420 kg
925.94 lbs.
Trunk (boot) space – minimum 300 l
10.59 cu. ft.
Trunk (boot) space – maximum 980 l
34.61 cu. ft.
Fuel tank capacity 63 l
16.64 US gal | 13.86 UK gal
Dimensions
Length 4492 mm
176.85 in.
Width 1688 mm
66.46 in.
Height 1320 mm
51.97 in.
Wheelbase 2600 mm
102.36 in.
Front track 1426 mm
56.14 in.
Rear (Back) track 1446 mm
56.93 in.
Drag coefficient (Cd) 0.26
Minimum turning circle (turning diameter) 11.45 m
37.57 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Independent type McPherson, Transverse stabilizer
Rear suspension Transverse stabilizer, Trailing arm
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/60 R14
Wheel rims size 5.5J x 14
