Specifications: Opel Corsa B 1.7 D (60 Hp) 1996, 1997

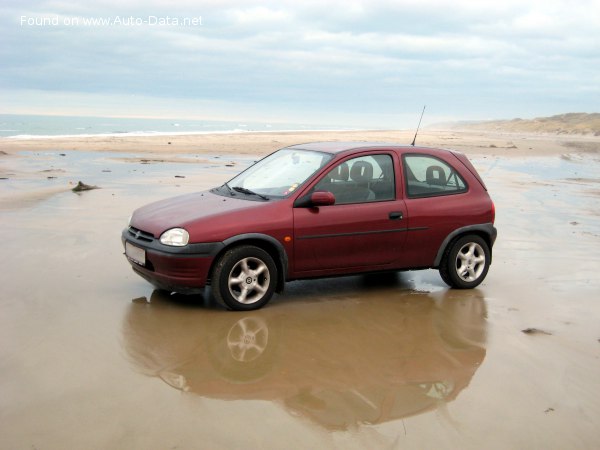

1994 Opel Corsa B - Photo 1

Opel Corsa B 1.7 D (60 Hp) – Full specifications
General information
Brand Opel
Model Corsa
Generation Corsa B
Modification (Engine) 1.7 D (60 Hp)
Start of production January, 1996 year
End of production February, 1997 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3-5
Performance specs
Fuel consumption (economy) – urban 6.9 l/100 km
34.09 US mpg
40.94 UK mpg
14.49 km/l
Fuel consumption (economy) – extra urban 4.2 l/100 km
56 US mpg
67.26 UK mpg
23.81 km/l
Fuel consumption (economy) – combined 5.2 l/100 km
45.23 US mpg
54.32 UK mpg
19.23 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 16.5 sec
Acceleration 0 – 62 mph 16.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 15.7 sec
Maximum speed 155 km/h
96.31 mph
Weight-to-power ratio 15.8 kg/Hp, 63.5 Hp/tonne
Weight-to-torque ratio 8.4 kg/Nm, 118.5 Nm/tonne
Engine specs
Power 60 Hp @ 4400 rpm.
Power per litre 35.6 Hp/l
Torque 112 Nm @ 2650 rpm.
82.61 lb.-ft. @ 2650 rpm.
Engine layout Front, Transverse
Engine Model/Code X17D, 4EE1
Engine displacement 1686 cm3
102.89 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 86 mm
3.39 in.
Compression ratio 22:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.75 l
3.96 US qt | 3.3 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt

Space, Volume and weights
Kerb Weight 945 kg
2083.37 lbs.
Max. weight 1410 kg
3108.52 lbs.
Max load 465 kg
1025.15 lbs.
Trunk (boot) space – minimum 260 l
9.18 cu. ft.
Trunk (boot) space – maximum 1050 l
37.08 cu. ft.
Fuel tank capacity 46 l
12.15 US gal | 10.12 UK gal
Dimensions
Length 3740 mm
147.24 in.
Width 1610 mm
63.39 in.
Height 1420 mm
55.91 in.
Wheelbase 2445 mm
96.26 in.
Front track 1385 mm
54.53 in.
Rear (Back) track 1390 mm
54.72 in.
Ride height (ground clearance) 140 mm
5.51 in.
Drag coefficient (Cd) 0.35
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent suspension, longitudinal arms with transverse torsion shafts
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 165/70 R13
Wheel rims size 5J x 13
