Specifications: Opel Corsa D 3-door 1.3 CDTI (75 Hp) 2006, 2007, 2008, 2009, 2010

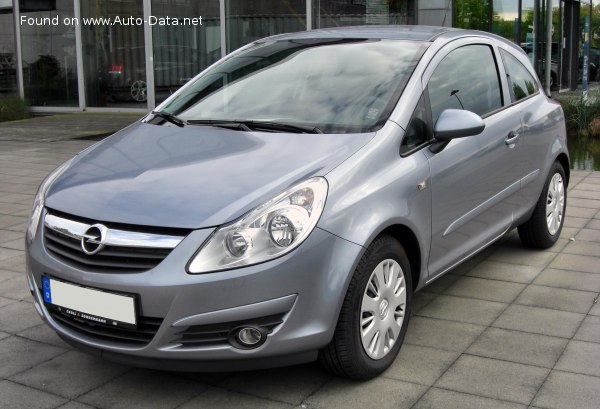

2007 Opel Corsa D 3-door - Photo 1

Opel Corsa D 3-door 1.3 CDTI (75 Hp) – Full specifications
General information
Brand Opel
Model Corsa
Generation Corsa D 3-door
Modification (Engine) 1.3 CDTI (75 Hp)
Start of production October, 2006 year
End of production June, 2010 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 5.8 l/100 km
40.55 US mpg
48.7 UK mpg
17.24 km/l
Fuel consumption (economy) – extra urban 3.9 l/100 km
60.31 US mpg
72.43 UK mpg
25.64 km/l
Fuel consumption (economy) – combined 4.6 l/100 km
51.13 US mpg
61.41 UK mpg
21.74 km/l
CO2 emissions 124 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.5 sec
Acceleration 0 – 62 mph 14.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.8 sec
Maximum speed 163 km/h
101.28 mph
Emission standard Euro 4
Weight-to-power ratio 15.5 kg/Hp, 64.7 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 146.6 Nm/tonne
Engine specs
Power 75 Hp @ 4000 rpm.
Power per litre 60.1 Hp/l
Torque 170 Nm @ 1750-2500 rpm.
125.39 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code Z13DTJ
Engine displacement 1248 cm3
76.16 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 69.6 mm
2.74 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 17.6:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.3 l
6.66 US qt | 5.54 UK qt

Space, Volume and weights
Kerb Weight 1160 kg
2557.36 lbs.
Max. weight 1570 kg
3461.26 lbs.
Max load 410 kg
903.9 lbs.
Trunk (boot) space – minimum 285 l
10.06 cu. ft.
Trunk (boot) space – maximum 11005 l
388.64 cu. ft.
Fuel tank capacity 44 l
11.62 US gal | 9.68 UK gal
Dimensions
Length 3999 mm
157.44 in.
Width 1737 mm
68.39 in.
Height 1488 mm
58.58 in.
Wheelbase 2511 mm
98.86 in.
Front track 1485 mm
58.46 in.
Rear (Back) track 1478 mm
58.19 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 185/65 R15
Wheel rims size 15
