Specifications: Opel Frontera B Sport 2.2 DTI (120 Hp) 4×4 2001, 2002, 2003

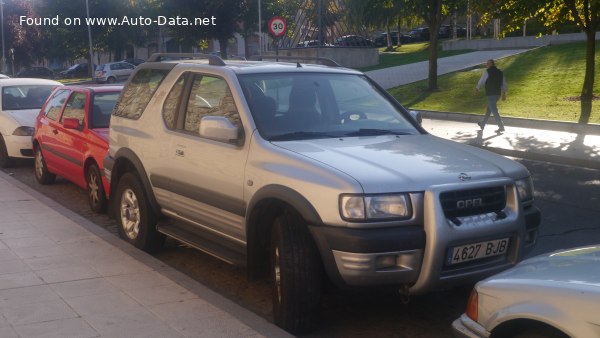

1998 Opel Frontera B Sport - Photo 1

Opel Frontera B Sport 2.2 DTI (120 Hp) 4×4 – Full specifications
General information
Brand Opel
Model Frontera
Generation Frontera B Sport
Modification (Engine) 2.2 DTI (120 Hp) 4×4
Start of production 2001 year
End of production December, 2003 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 10.6 l/100 km
22.19 US mpg
26.65 UK mpg
9.43 km/l
Fuel consumption (economy) – extra urban 6.9 l/100 km
34.09 US mpg
40.94 UK mpg
14.49 km/l
Fuel consumption (economy) – combined 8.3 l/100 km
28.34 US mpg
34.03 UK mpg
12.05 km/l
CO2 emissions 224 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 14.5 sec
Acceleration 0 – 62 mph 14.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.8 sec
Maximum speed 158 km/h
98.18 mph
Emission standard Euro 3
Weight-to-power ratio 14.3 kg/Hp, 69.8 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 162.8 Nm/tonne
Engine specs
Power 120 Hp @ 4000 rpm.
Power per litre 55.3 Hp/l
Torque 280 Nm @ 1500 rpm.
206.52 lb.-ft. @ 1500 rpm.
Engine layout Front, Longitudinal
Engine Model/Code Y22DTH
Engine displacement 2171 cm3
132.48 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 84 mm
3.31 in.
Piston Stroke 98 mm
3.86 in.
Compression ratio 18.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.9 l
8.35 US qt | 6.95 UK qt

Space, Volume and weights
Kerb Weight 1720 kg
3791.95 lbs.
Max. weight 2300 kg
5070.63 lbs.
Max load 580 kg
1278.68 lbs.
Trunk (boot) space – minimum 320 l
11.3 cu. ft.
Trunk (boot) space – maximum 1137 l
40.15 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Dimensions
Length 4268 mm
168.03 in.
Width 1787 mm
70.35 in.
Height 1692 mm
66.61 in.
Wheelbase 2462 mm
96.93 in.
Front track 1515 mm
59.65 in.
Rear (Back) track 1520 mm
59.84 in.
Ride height (ground clearance) 208 mm
8.19 in.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Torsion
Rear suspension Coil spring
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 235/75 R15
Wheel rims size 15
