Specifications: Opel Grandland B 1.6 Turbo (195 Hp) Plug-in Hybrid e-DCT 2024, 2025

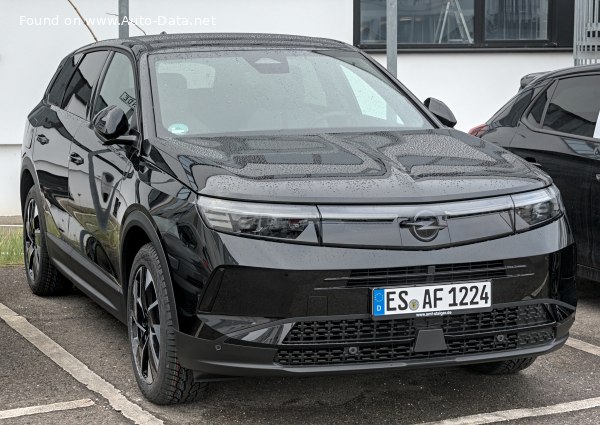

2024 Opel Grandland B - Photo 1

Opel Grandland B 1.6 Turbo (195 Hp) Plug-in Hybrid e-DCT – Full specifications
General information
Brand Opel
Model Grandland
Generation Grandland B
Modification (Engine) 1.6 Turbo (195 Hp) Plug-in Hybrid e-DCT
Start of production October, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 0.8-0.9 l/100 km
294.02 – 261.35 US mpg
353.1 – 313.87 UK mpg
125 – 111.11 km/l
CO2 emissions (WLTP) 19-21 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 7.8 sec
Acceleration 0 – 62 mph 7.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.4 sec
Maximum speed 220 km/h
136.7 mph
Emission standard Euro 6e
Weight-to-power ratio 9.3 kg/Hp, 107.1 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 192.2 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 17.9 kWh
Battery technology Lithium-ion (Li-Ion)
All-electric range (WLTP) 85-87 km
52.82 – 54.06 mi
Average Energy consumption (WLTP) 21.9-23.4 kWh/100 km

35.24 – 37.66 kWh/100 mi
96 – 89 MPGe
4.6 – 4.3 km/kWh
2.8 – 2.7 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 125 Hp @ 9000 rpm.
Electric motor Torque 118-300-7320 Nm

87.03 – 221.27 lb.-ft.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 195 Hp
System torque 350 Nm
258.15 lb.-ft.
Internal combustion engine specs
Power 150 Hp @ 5500 rpm.
Power per litre 93.9 Hp/l
Torque 300 Nm @ 2000 rpm.
221.27 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.8 mm
3.38 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1821 kg
4014.62 lbs.
Max. weight 2460 kg
5423.37 lbs.
Max load 639 kg
1408.75 lbs.
Trunk (boot) space – minimum 550 l
19.42 cu. ft.
Trunk (boot) space – maximum 1645 l
58.09 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 80 kg
176.37 lbs.
Dimensions
Length 4650 mm
183.07 in.
Width 1905 mm
75 in.
Width with mirrors folded 1934 mm
76.14 in.
Width including mirrors 2103 mm
82.8 in.
Height 1665-1667 mm
65.55 – 65.63 in.
Wheelbase 2784 mm
109.61 in.
Front track 1610-1624 mm
63.39 – 63.94 in.
Rear (Back) track 1598-1614 mm
62.91 – 63.54 in.
Front overhang 962 mm
37.87 in.
Rear overhang 904 mm
35.59 in.
Minimum turning circle (turning diameter) 10.93 m
35.86 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission e-DCT
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R19; 235/55 R19; 235/50 R20
Wheel rims size 19; 20
