Specifications: Opel Grandland (facelift 2021) 1.2 Turbo (136 Hp) Mild Hybrid e-DCT 2024

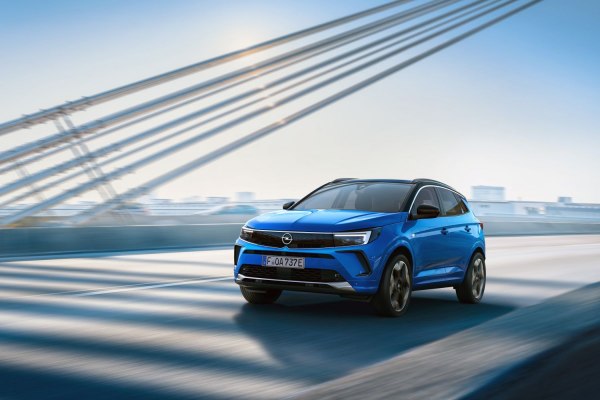

2022 Opel Grandland (facelift 2021) - Photo 1

Opel Grandland (facelift 2021) 1.2 Turbo (136 Hp) Mild Hybrid e-DCT – Full specifications
General information
Brand Opel
Model Grandland
Generation Grandland (facelift 2021)
Modification (Engine) 1.2 Turbo (136 Hp) Mild Hybrid e-DCT
Start of production March, 2024 year
End of production September, 2024 year
Powertrain Architecture MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 4.9 l/100 km
48 US mpg
57.65 UK mpg
20.41 km/l
Fuel consumption at Medium speed (WLTP) 5.4 l/100 km
43.56 US mpg
52.31 UK mpg
18.52 km/l
Fuel consumption at high speed (WLTP) 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel consumption at very high speed (WLTP) 6.7 l/100 km
35.11 US mpg
42.16 UK mpg
14.93 km/l
Combined fuel consumption (WLTP) 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
CO2 emissions (WLTP) 128 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10 sec
Acceleration 0 – 62 mph 10 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.5 sec
Maximum speed 200 km/h
124.27 mph
Emission standard Euro 6e
Weight-to-power ratio 10.7 kg/Hp, 93.1 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 157.4 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.89 kWh
Net (usable) battery capacity 0.432 kWh
Battery voltage 48 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the front seats
All-electric range 1 km
0.62 mi
Electric motor 1
Electric motor power 28 Hp @ 2000 rpm.
Electric motor Torque 55 Nm

40.57 lb.-ft.
Electric motor location Integrated into the transmission
Electric motor type Synchronous
Internal combustion engine specs
Power 136 Hp @ 5500 rpm.
Power per litre 113.4 Hp/l
Torque 230 Nm @ 1750 rpm.
169.64 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code EB2LTDH2
Engine displacement 1199 cm3
73.17 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 90.5 mm
3.56 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1461 kg
3220.95 lbs.
Max. weight 2050 kg
4519.48 lbs.
Max load 589 kg
1298.52 lbs.
Trunk (boot) space – minimum 514 l
18.15 cu. ft.
Trunk (boot) space – maximum 1652 l
58.34 cu. ft.
Fuel tank capacity 53 l
14 US gal | 11.66 UK gal
Max. roof load 85 kg
187.39 lbs.
Permitted trailer load with brakes (12%) 1250 kg
2755.78 lbs.
Permitted trailer load without brakes 685 kg
1510.17 lbs.
Permitted towbar download 70 kg
154.32 lbs.
Dimensions
Length 4477 mm
176.26 in.
Width 1906 mm
75.04 in.
Width including mirrors 2098 mm
82.6 in.
Height 1609 mm
63.35 in.
Wheelbase 2675 mm
105.31 in.
Front track 1579-1595 mm
62.17 – 62.8 in.
Rear (Back) track 1587-1610 mm
62.48 – 63.39 in.
Front overhang 933 mm
36.73 in.
Rear overhang 869 mm
34.21 in.
Ride height (ground clearance) 188 mm
7.4 in.
Minimum turning circle (turning diameter) 10.67 m
35.01 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission e-DCT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/65 R17; 225/55 R18; 205/55 R19
Wheel rims size 7J x 17; 7.5J x 18; 7J x 19
