Specifications: Opel Insignia Sedan (A) 2.0 CDTI (110 Hp) Ecotec startstop 2011, 2012, 2013

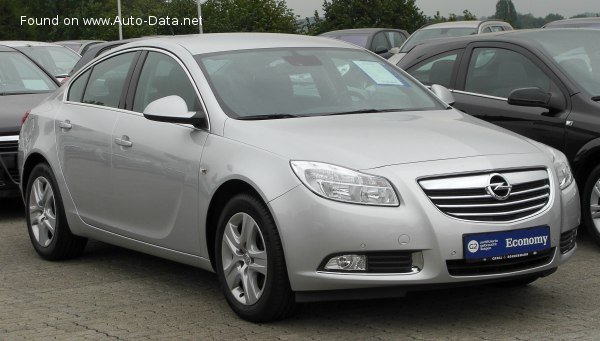

2009 Opel Insignia Sedan (A) - Photo 1

Opel Insignia Sedan (A) 2.0 CDTI (110 Hp) Ecotec start/stop – Full specifications
General information
Brand Opel
Model Insignia
Generation Insignia Sedan (A)
Modification (Engine) 2.0 CDTI (110 Hp) Ecotec start/stop
Start of production July, 2011 year
End of production June, 2013 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 5.1 l/100 km
46.12 US mpg
55.39 UK mpg
19.61 km/l
Fuel consumption (economy) – extra urban 3.8 l/100 km
61.9 US mpg
74.34 UK mpg
26.32 km/l
Fuel consumption (economy) – combined 4.3 l/100 km
54.7 US mpg
65.69 UK mpg
23.26 km/l
CO2 emissions 114 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.1 sec
Acceleration 0 – 62 mph 12.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.5 sec
Maximum speed 190 km/h
118.06 mph
Emission standard Euro 5
Weight-to-power ratio 14 kg/Hp, 71.5 Hp/tonne
Weight-to-torque ratio 5.9 kg/Nm, 169.1 Nm/tonne
Engine specs
Power 110 Hp @ 4000 rpm.
Power per litre 56.2 Hp/l
Torque 260 Nm @ 1750-2500 rpm.
191.77 lb.-ft. @ 1750-2500 rpm.
Engine layout Front, Transverse
Engine Model/Code A20DTL
Engine displacement 1956 cm3
119.36 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 16.5:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1538 kg
3390.71 lbs.
Max. weight 2140 kg
4717.89 lbs.
Max load 602 kg
1327.18 lbs.
Trunk (boot) space – minimum 500 l
17.66 cu. ft.
Trunk (boot) space – maximum 1015 l
35.84 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 1600 kg
3527.4 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4830 mm
190.16 in.
Width 1858 mm
73.15 in.
Width including mirrors 2084 mm
82.05 in.
Height 1498 mm
58.98 in.
Wheelbase 2737 mm
107.76 in.
Front track 1585 mm
62.4 in.
Rear (Back) track 1590 mm
62.6 in.
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/60 R 16
Wheel rims size 6.5J x 16
