Specifications: Opel Manta A 1.6 (75 Hp) 1975

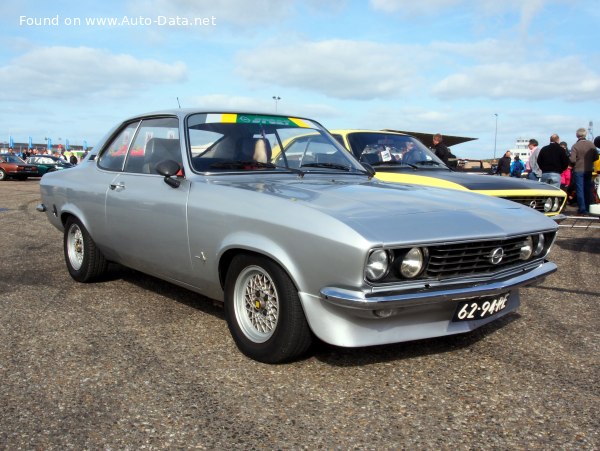

1971 Opel Manta A - Photo 1

Opel Manta A 1.6 (75 Hp) – Full specifications
General information
Brand Opel
Model Manta
Generation Manta A
Modification (Engine) 1.6 (75 Hp)
Start of production 1975 year
End of production 1975 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 4
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 15 sec
Acceleration 0 – 62 mph 15 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 14.3 sec
Maximum speed 160 km/h
99.42 mph
Weight-to-power ratio 12.6 kg/Hp, 79.4 Hp/tonne
Weight-to-torque ratio 8.2 kg/Nm, 121.7 Nm/tonne
Engine specs
Power 75 Hp @ 5000 rpm.
Power per litre 47.3 Hp/l
Torque 115 Nm @ 3800 rpm.
84.82 lb.-ft. @ 3800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 16S
Engine displacement 1584 cm3
96.66 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 85 mm
3.35 in.
Piston Stroke 69.8 mm
2.75 in.
Compression ratio 8.8:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 3.8 l
4.02 US qt | 3.34 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt

Space, Volume and weights
Kerb Weight 945 kg
2083.37 lbs.
Max. weight 1310 kg
2888.06 lbs.
Max load 365 kg
804.69 lbs.
Trunk (boot) space – minimum 326 l
11.51 cu. ft.
Fuel tank capacity 46 l
12.15 US gal | 10.12 UK gal
Permitted trailer load with brakes (12%) 1000 kg
2204.62 lbs.
Permitted trailer load without brakes 500 kg
1102.31 lbs.
Dimensions
Length 4292 mm
168.98 in.
Width 1626 mm
64.02 in.
Height 1360 mm
53.54 in.
Wheelbase 2430 mm
95.67 in.
Front track 1331 mm
52.4 in.
Rear (Back) track 1320 mm
51.97 in.
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 4 gears, manual transmission
Front brakes Disc
Rear brakes Drum
