Specifications: Opel Omega B Caravan 2.5i V6 (170 Hp) 1994, 1995, 1996, 1997, 1998, 1999

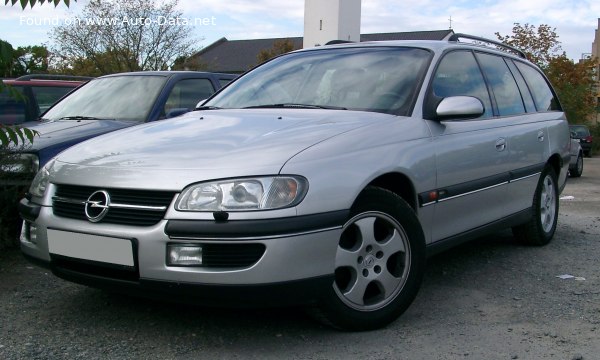

1994 Opel Omega B Caravan - Photo 1

Opel Omega B Caravan 2.5i V6 (170 Hp) – Full specifications
General information
Brand Opel
Model Omega
Generation Omega B Caravan
Modification (Engine) 2.5i V6 (170 Hp)
Start of production April, 1994 year
End of production July, 1999 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 15.3 l/100 km
15.37 US mpg
18.46 UK mpg
6.54 km/l
Fuel consumption (economy) – extra urban 8.3 l/100 km
28.34 US mpg
34.03 UK mpg
12.05 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10 sec
Acceleration 0 – 62 mph 10 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.5 sec
Maximum speed 220 km/h
136.7 mph
Weight-to-power ratio 9.7 kg/Hp, 103.3 Hp/tonne
Weight-to-torque ratio 7.2 kg/Nm, 139.8 Nm/tonne
Engine specs
Power 170 Hp @ 5800 rpm.
Power per litre 68.1 Hp/l
Torque 230 Nm @ 3200 rpm.
169.64 lb.-ft. @ 3200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code X25XE
Engine displacement 2498 cm3
152.44 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 81.6 mm
3.21 in.
Piston Stroke 79.6 mm
3.13 in.
Compression ratio 10.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.75 l
6.08 US qt | 5.06 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.7 l
10.25 US qt | 8.53 UK qt

Space, Volume and weights
Kerb Weight 1645 kg
3626.6 lbs.
Max. weight 2280 kg
5026.54 lbs.
Max load 635 kg
1399.94 lbs.
Trunk (boot) space – minimum 540 l
19.07 cu. ft.
Trunk (boot) space – maximum 1800 l
63.57 cu. ft.
Fuel tank capacity 75 l
19.81 US gal | 16.5 UK gal
Dimensions
Length 4820 mm
189.76 in.
Width 1785 mm
70.28 in.
Height 1500 mm
59.06 in.
Wheelbase 2730 mm
107.48 in.
Front track 1510 mm
59.45 in.
Rear (Back) track 1530 mm
60.24 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Worm-reduction unit
Power steering Hydraulic Steering
Tires size 205/65 R15
Wheel rims size 6J x 15
