Specifications: Opel Tigra B TwinTop 1.4i 16V ECOTEC (90 Hp) 2004, 2005, 2006, 2007, 2008, 2009

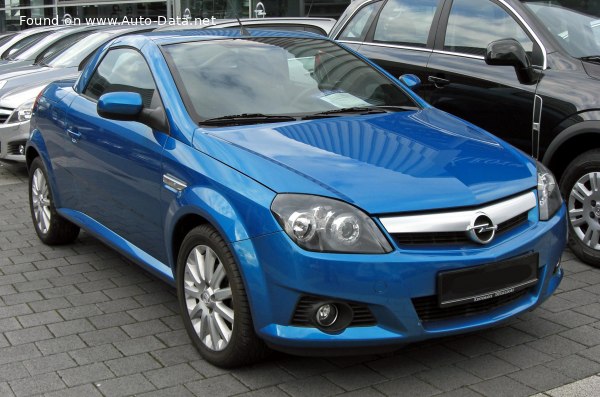

2005 Opel Tigra B TwinTop - Photo 1

Opel Tigra B TwinTop 1.4i 16V ECOTEC (90 Hp) – Full specifications
General information
Brand Opel
Model Tigra
Generation Tigra B TwinTop
Modification (Engine) 1.4i 16V ECOTEC (90 Hp)
Start of production October, 2004 year
End of production June, 2009 year
Powertrain Architecture Internal Combustion engine
Body type Coupe – Cabriolet
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban 8.1 l/100 km
29.04 US mpg
34.87 UK mpg
12.35 km/l
Fuel consumption (economy) – extra urban 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
Fuel consumption (economy) – combined 6.1 l/100 km
38.56 US mpg
46.31 UK mpg
16.39 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 12.4 sec
Acceleration 0 – 62 mph 12.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.8 sec
Maximum speed 180 km/h
111.85 mph
Weight-to-power ratio 13.7 kg/Hp, 72.9 Hp/tonne
Weight-to-torque ratio 9.9 kg/Nm, 101.2 Nm/tonne
Engine specs
Power 90 Hp @ 5600 rpm.
Power per litre 66 Hp/l
Torque 125 Nm @ 4000 rpm.
92.2 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code Z14XEP
Engine displacement 1364 cm3
83.24 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 73.4 mm
2.89 in.
Piston Stroke 80.6 mm
3.17 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5 l
5.28 US qt | 4.4 UK qt

Space, Volume and weights
Kerb Weight 1235 kg
2722.71 lbs.
Max. weight 1450 kg
3196.7 lbs.
Max load 215 kg
473.99 lbs.
Trunk (boot) space – minimum 250 l
8.83 cu. ft.
Trunk (boot) space – maximum 440 l
15.54 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 3921 mm
154.37 in.
Width 1685 mm
66.34 in.
Height 1364 mm
53.7 in.
Wheelbase 2491 mm
98.07 in.
Front track 1429 mm
56.26 in.
Rear (Back) track 1420 mm
55.91 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Spring Strut
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 185/60 R15
Wheel rims size 6J x 15
