Specifications: Opel Vectra B Caravan 2.0i 16V (136 Hp) 1995, 1996, 1997, 1998

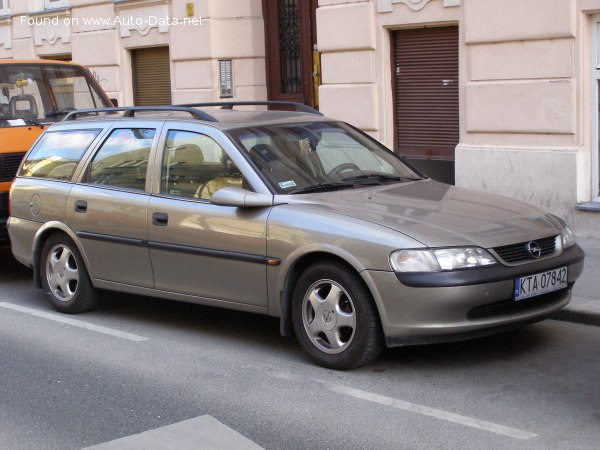

1997 Opel Vectra B Caravan - Photo 1

Opel Vectra B Caravan 2.0i 16V (136 Hp) – Full specifications
General information
Brand Opel
Model Vectra
Generation Vectra B Caravan
Modification (Engine) 2.0i 16V (136 Hp)
Start of production October, 1995 year
End of production November, 1998 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 12.4 l/100 km
18.97 US mpg
22.78 UK mpg
8.06 km/l
Fuel consumption (economy) – extra urban 6.6 l/100 km
35.64 US mpg
42.8 UK mpg
15.15 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10 sec
Acceleration 0 – 62 mph 10 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.5 sec
Maximum speed 207 km/h
128.62 mph
Weight-to-power ratio 10.1 kg/Hp, 98.7 Hp/tonne
Weight-to-torque ratio 7.3 kg/Nm, 136.4 Nm/tonne
Engine specs
Power 136 Hp @ 5600 rpm.
Power per litre 68.1 Hp/l
Torque 188 Nm @ 3200 rpm.
138.66 lb.-ft. @ 3200 rpm.
Engine layout Front, Transverse
Engine Model/Code X20XEV
Engine displacement 1998 cm3
121.93 cu. in.
Number of cylinders 4
Engine configuration Inline
Piston Stroke 86 mm
3.39 in.
Compression ratio 10.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.1 l
7.5 US qt | 6.25 UK qt

Space, Volume and weights
Kerb Weight 1378 kg
3037.97 lbs.
Max. weight 1960 kg
4321.06 lbs.
Max load 582 kg
1283.09 lbs.
Trunk (boot) space – minimum 460 l
16.24 cu. ft.
Trunk (boot) space – maximum 1490 l
52.62 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4490 mm
176.77 in.
Width 1707 mm
67.2 in.
Width including mirrors 1841 mm
72.48 in.
Height 1490 mm
58.66 in.
Wheelbase 2637 mm
103.82 in.
Front track 1484 mm
58.43 in.
Rear (Back) track 1473 mm
57.99 in.
Ride height (ground clearance) 160 mm
6.3 in.
Drag coefficient (Cd) 0.32
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring
Rear suspension Coil spring
Front brakes Disc
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 5.5J x 15
