Specifications: Opel Zafira B 1.9 CDTI (120 Hp) Automatic 2005, 2006, 2007, 2008

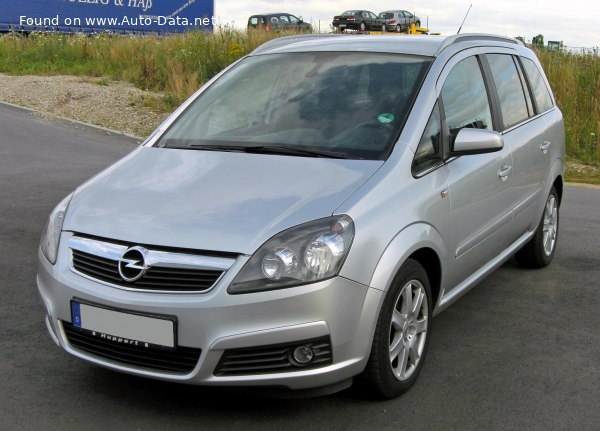

2006 Opel Zafira B - Photo 1

Opel Zafira B 1.9 CDTI (120 Hp) Automatic – Full specifications
General information
Brand Opel
Model Zafira
Generation Zafira B
Modification (Engine) 1.9 CDTI (120 Hp) Automatic
Start of production July, 2005 year
End of production 2008 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – extra urban 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
Fuel consumption (economy) – combined 7.2 l/100 km
32.67 US mpg
39.23 UK mpg
13.89 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.5 sec
Acceleration 0 – 62 mph 12.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.9 sec
Maximum speed 182 km/h
113.09 mph
Emission standard Euro 4
Weight-to-power ratio 13.4 kg/Hp, 74.4 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 173.6 Nm/tonne
Engine specs
Power 120 Hp @ 3500 rpm.
Power per litre 62.8 Hp/l
Torque 280 Nm @ 2000-2750 rpm.
206.52 lb.-ft. @ 2000-2750 rpm.
Engine layout Front, Transverse
Engine Model/Code Z19DT
Engine displacement 1910 cm3
116.56 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 82 mm
3.23 in.
Piston Stroke 90.4 mm
3.56 in.
Compression ratio 18:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1613 kg
3556.06 lbs.
Max. weight 2180 kg
4806.08 lbs.
Max load 567 kg
1250.02 lbs.
Trunk (boot) space – minimum 140 l
4.94 cu. ft.
Trunk (boot) space – maximum 1820 l
64.27 cu. ft.
Fuel tank capacity 58 l
15.32 US gal | 12.76 UK gal
Dimensions
Length 4467 mm
175.87 in.
Width 1801 mm
70.91 in.
Height 1645 mm
64.76 in.
Wheelbase 2703 mm
106.42 in.
Front track 1488 mm
58.58 in.
Rear (Back) track 1510 mm
59.45 in.
Drag coefficient (Cd) 0.31
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 205/55 R16
Wheel rims size 6.5J X 16
