Specifications: Pagani Huayra Codalunga 6.0 V12 (840 Hp) Xtrac 2022

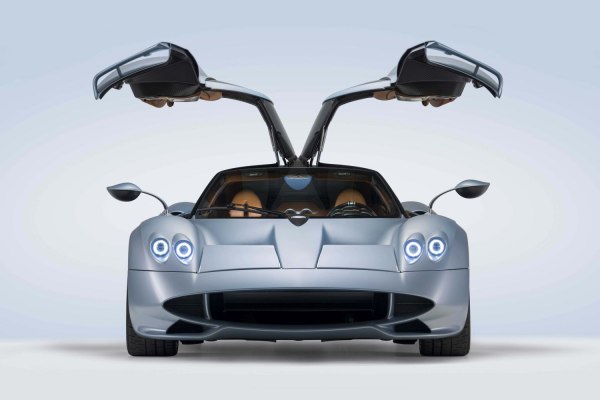

2023 Pagani Huayra Codalunga - Photo 1

Pagani Huayra Codalunga 6.0 V12 (840 Hp) Xtrac – Full specifications
General information
Brand Pagani
Model Huayra
Generation Huayra Codalunga
Modification (Engine) 6.0 V12 (840 Hp) Xtrac
Start of production 2022 year
End of production 2022 year
Powertrain Architecture Internal Combustion engine
Body type Coupe
Seats 2
Doors 2
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 1.5 kg/Hp, 656.3 Hp/tonne
Weight-to-torque ratio 1.2 kg/Nm, 859.4 Nm/tonne
Engine specs
Power 840 Hp @ 5900 rpm.
Power per litre 140.5 Hp/l
Torque 1100 Nm @ 2000-5600 rpm.
811.32 lb.-ft. @ 2000-5600 rpm.
Engine layout Middle, Longitudinal
Engine Model/Code M158
Engine displacement 5980 cm3
364.92 cu. in.
Number of cylinders 12
Engine configuration V-engine
Cylinder Bore 82.6 mm
3.25 in.
Piston Stroke 93 mm
3.66 in.
Number of valves per cylinder 3
Fuel injection system Multi-port manifold injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain SOHC
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1280 kg
2821.92 lbs.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission Xtrac
Front suspension Coil spring, Double wishbone
Rear suspension Double wishbone, Coil spring
Front brakes Ventilated discs, 410×38 mm
Rear brakes Ventilated discs, 390×34 mm
Assisting systems ABS (Anti-lock braking system)
Tires size Front wheel tires: 265/30 R20
Rear wheel tires: 355/25 R21
Wheel rims size Front wheel rims: 20
Rear wheel rims: 21
