Specifications: Peugeot 107 (Phase III, 2012) 3-door 1.0 (68 Hp) 2012, 2013, 2014

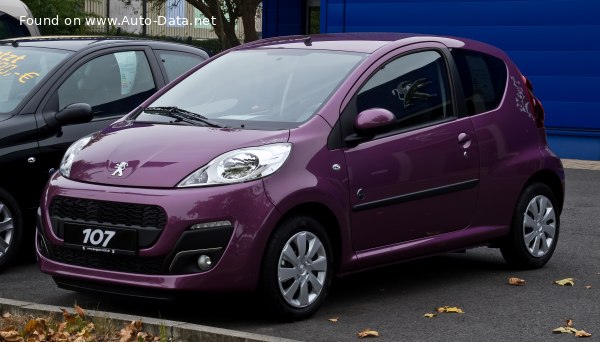

2012 Peugeot 107 (Phase III, 2012) 3-door - Photo 1

Peugeot 107 (Phase III, 2012) 3-door 1.0 (68 Hp) – Full specifications
General information
Brand Peugeot
Model 107
Generation 107 (Phase III, 2012) 3-door
Modification (Engine) 1.0 (68 Hp)
Start of production 2012 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 4
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) – extra urban (NEDC) 3.8 l/100 km
61.9 US mpg
74.3 UK mpg
26.3 km/l
Fuel consumption (economy) – combined (NEDC) 4.3 l/100 km
54.7 US mpg
65.7 UK mpg
23.3 km/l
CO2 emissions (NEDC) 99 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.7 sec
Acceleration 0 – 62 mph 13.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13 sec
Maximum speed 157 km/h
97.56 mph
Emission standard Euro 5
Weight-to-power ratio 12.1 kg/Hp, 82.4 Hp/tonne
Weight-to-torque ratio 8.9 kg/Nm, 112.7 Nm/tonne
Engine specs
Power 68 Hp @ 6000 rpm.
Power per litre 68.1 Hp/l
Torque 93 Nm @ 3600 rpm.
68.59 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code CFB 1KR
Engine displacement 998 cm3
60.9 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 71 mm
2.8 in.
Piston Stroke 84 mm
3.31 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4 l
4.23 US qt | 3.52 UK qt

Space, Volume and weights
Kerb Weight 825 kg
1818.81 lbs.
Max. weight 1180 kg
2601.45 lbs.
Max load 355 kg
782.64 lbs.
Trunk (boot) space – minimum 130 l
4.59 cu. ft.
Trunk (boot) space – maximum 712 l
25.14 cu. ft.
Fuel tank capacity 35 l
9.25 US gal | 7.7 UK gal
Max. roof load 50 kg
110.23 lbs.
Dimensions
Length 3430 mm
135.04 in.
Width 1630 mm
64.17 in.
Width including mirrors 1855 mm
73.03 in.
Height 1465 mm
57.68 in.
Wheelbase 2340 mm
92.13 in.
Front track 1415 mm
55.71 in.
Rear (Back) track 1405 mm
55.31 in.
Front overhang 645 mm
25.39 in.
Rear overhang 445 mm
17.52 in.
Minimum turning circle (turning diameter) 9.46 m
31.04 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Elastic beam
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 155/65 R14
Wheel rims size 4.5J x 14
