Specifications: Peugeot 205 I (20AC, facelift 1987) 3-door 1.8 D (78 Hp) 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

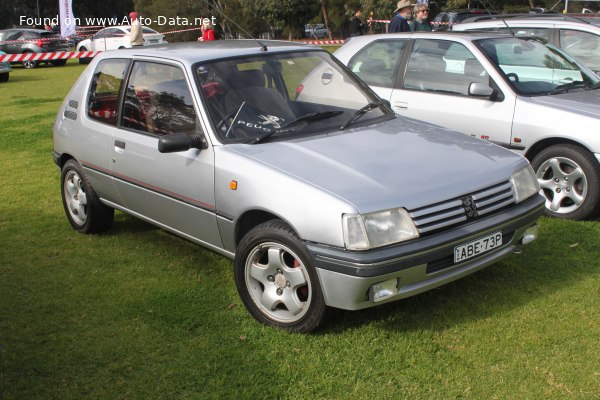

1983 Peugeot 205 I (20A/C, facelift 1987) 3-door - Photo 1

Peugeot 205 I (20A/C, facelift 1987) 3-door 1.8 D (78 Hp) – Full specifications
General information
Brand Peugeot
Model 205
Generation 205 I (20A/C, facelift 1987) 3-door
Modification (Engine) 1.8 D (78 Hp)
Start of production 1990 year
End of production 1997 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
Fuel consumption (economy) – extra urban 4.6 l/100 km
51.1 US mpg
61.4 UK mpg
21.7 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.2 sec
Acceleration 0 – 62 mph 12.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.6 sec
Maximum speed 175 km/h
108.74 mph
Weight-to-power ratio 11.1 kg/Hp, 90.2 Hp/tonne
Weight-to-torque ratio 5.5 kg/Nm, 181.5 Nm/tonne
Engine specs
Power 78 Hp @ 4300 rpm.
Power per litre 44.1 Hp/l
Torque 157 Nm @ 2100 rpm.
115.8 lb.-ft. @ 2100 rpm.
Engine layout Front, Transverse
Engine Model/Code XUD7T
Engine displacement 1769 cm3
107.95 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80 mm
3.15 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 22:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.3 l
8.77 US qt | 7.3 UK qt

Space, Volume and weights
Kerb Weight 865 kg
1907 lbs.
Max. weight 1325 kg
2921.12 lbs.
Max load 460 kg
1014.13 lbs.
Trunk (boot) space – minimum 246 l
8.69 cu. ft.
Trunk (boot) space – maximum 564 l
19.92 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Permitted trailer load with brakes (12%) 800 kg
1763.7 lbs.
Dimensions
Length 3705 mm
145.87 in.
Width 1560 mm
61.42 in.
Height 1375 mm
54.13 in.
Wheelbase 2420 mm
95.28 in.
Front track 1350 mm
53.15 in.
Rear (Back) track 1300 mm
51.18 in.
Drag coefficient (Cd) 0.35
Minimum turning circle (turning diameter) 10.5 m
34.45 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Steering type Steering rack and pinion
Tires size 165/70 R13
Wheel rims size 13
