Specifications: Peugeot 207 1.6 i 16V (120 Hp) 2007, 2008, 2009

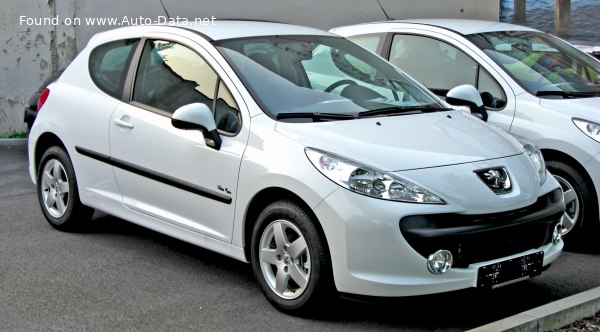

2006 Peugeot 207 - Photo 1

Peugeot 207 1.6 i 16V (120 Hp) – Full specifications
General information
Brand Peugeot
Model 207
Generation 207
Modification (Engine) 1.6 i 16V (120 Hp)
Start of production 2007 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3-5
Performance specs
Fuel consumption (economy) – urban 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
Fuel consumption (economy) – extra urban 4.8 l/100 km
49 US mpg
58.9 UK mpg
20.8 km/l
Fuel consumption (economy) – combined 6.1 l/100 km
38.6 US mpg
46.3 UK mpg
16.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.6 sec
Acceleration 0 – 62 mph 9.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.1 sec
Maximum speed 200 km/h
124.27 mph
Emission standard Euro 4
Weight-to-power ratio 10.6 kg/Hp, 94.1 Hp/tonne
Weight-to-torque ratio 8 kg/Nm, 125.5 Nm/tonne
Engine specs
Power 120 Hp @ 6000 rpm.
Power per litre 75.1 Hp/l
Torque 160 Nm @ 4250 rpm.
118.01 lb.-ft. @ 4250 rpm.
Engine layout Front, Transverse
Engine Model/Code 5FW EP6
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.8 mm
3.38 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.4 l
5.71 US qt | 4.75 UK qt

Space, Volume and weights
Kerb Weight 1275 kg
2810.89 lbs.
Max. weight 1640 kg
3615.58 lbs.
Max load 365 kg
804.69 lbs.
Trunk (boot) space – minimum 270 l
9.53 cu. ft.
Trunk (boot) space – maximum 923 l
32.6 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4030 mm
158.66 in.
Width 1720 mm
67.72 in.
Width with mirrors folded 1818 mm
71.57 in.
Width including mirrors 1972 mm
77.64 in.
Height 1472 mm
57.95 in.
Wheelbase 2540 mm
100 in.
Front track 1475 mm
58.07 in.
Rear (Back) track 1466 mm
57.72 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring, Elastic beam
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/55 R16
