Specifications: Peugeot 207 (facelift 2009) 1.6 HDi (92 Hp) 2009, 2010, 2011, 2012

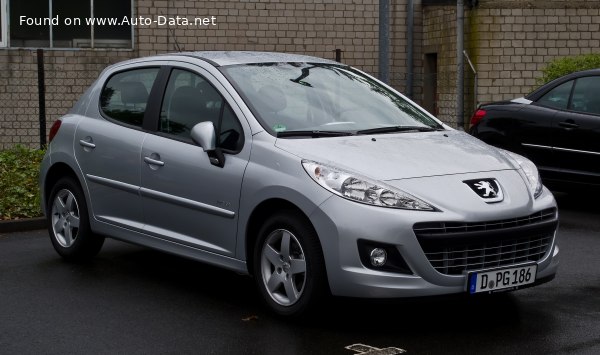

2009 Peugeot 207 (facelift 2009) - Photo 1

Peugeot 207 (facelift 2009) 1.6 HDi (92 Hp) – Full specifications
General information
Brand Peugeot
Model 207
Generation 207 (facelift 2009)
Modification (Engine) 1.6 HDi (92 Hp)
Start of production 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3-5
Performance specs
Fuel consumption (economy) – urban 5.2 l/100 km
45.2 US mpg
54.3 UK mpg
19.2 km/l
Fuel consumption (economy) – extra urban 3.5 l/100 km
67.2 US mpg
80.7 UK mpg
28.6 km/l
Fuel consumption (economy) – combined 4.2 l/100 km
56 US mpg
67.3 UK mpg
23.8 km/l
CO2 emissions 110 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.9 sec
Acceleration 0 – 62 mph 11.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.3 sec
Maximum speed 183 km/h
113.71 mph
Emission standard Euro 5
Weight-to-power ratio 12.9 kg/Hp, 77.4 Hp/tonne
Weight-to-torque ratio 5.2 kg/Nm, 193.4 Nm/tonne
Engine specs
Power 92 Hp @ 4000 rpm.
Power per litre 59 Hp/l
Torque 230 Nm @ 1750 rpm.
169.64 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code 9HP DV6DTED
Engine displacement 1560 cm3
95.2 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 88.3 mm
3.48 in.
Compression ratio 18:1
Number of valves per cylinder 2
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 3.75 l
3.96 US qt | 3.3 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.6 l
5.92 US qt | 4.93 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1189 kg
2621.3 lbs.
Max. weight 1703 kg
3754.47 lbs.
Max load 514 kg
1133.18 lbs.
Trunk (boot) space – minimum 270 l
9.53 cu. ft.
Trunk (boot) space – maximum 923 l
32.6 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Permitted trailer load with brakes (12%) 1150 kg
2535.32 lbs.
Permitted trailer load without brakes 600 kg
1322.77 lbs.
Dimensions
Length 4045 mm
159.25 in.
Width 1748 mm
68.82 in.
Width with mirrors folded 1818 mm
71.57 in.
Width including mirrors 1972 mm
77.64 in.
Height 1472 mm
57.95 in.
Wheelbase 2540 mm
100 in.
Front track 1475 mm
58.07 in.
Rear (Back) track 1468 mm
57.8 in.
Drag coefficient (Cd) 0.30
Minimum turning circle (turning diameter) 11.0 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring, Elastic beam
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 195/55 R16
Wheel rims size 16
