Specifications: Peugeot 207 SW (facelift 2009) 1.6 VTi (120 Hp) 2009, 2010, 2011, 2012, 2013

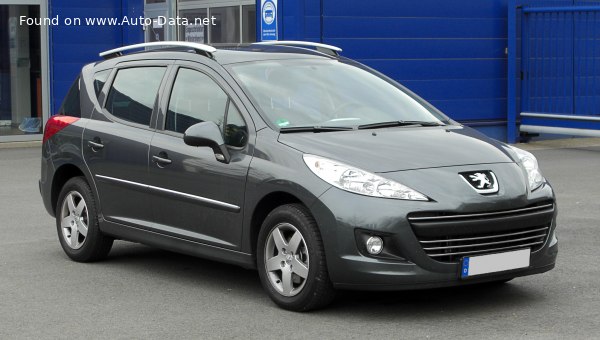

2009 Peugeot 207 SW (facelift 2009) - Photo 1

Peugeot 207 SW (facelift 2009) 1.6 VTi (120 Hp) – Full specifications
General information
Brand Peugeot
Model 207
Generation 207 SW (facelift 2009)
Modification (Engine) 1.6 VTi (120 Hp)
Start of production 2009 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.3 l/100 km
28.3 US mpg
34 UK mpg
12 km/l
Fuel consumption (economy) – extra urban 4.9 l/100 km
48 US mpg
57.6 UK mpg
20.4 km/l
Fuel consumption (economy) – combined 6.1 l/100 km
38.6 US mpg
46.3 UK mpg
16.4 km/l
CO2 emissions 140 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.6 sec
Acceleration 0 – 62 mph 9.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.1 sec
Maximum speed 192 km/h
119.3 mph
Emission standard Euro 5
Weight-to-power ratio 10 kg/Hp, 99.7 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 132.9 Nm/tonne
Engine specs
Power 120 Hp @ 6000 rpm.
Power per litre 75.1 Hp/l
Torque 160 Nm @ 4250 rpm.
118.01 lb.-ft. @ 4250 rpm.
Engine layout Front, Transverse
Engine Model/Code 5FS EP6C
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.8 mm
3.38 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC-VVT
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 5.7 l
6.02 US qt | 5.02 UK qt

Space, Volume and weights
Kerb Weight 1204 kg
2654.37 lbs.
Max. weight 1707 kg
3763.29 lbs.
Max load 503 kg
1108.93 lbs.
Trunk (boot) space – minimum 337 l
11.9 cu. ft.
Trunk (boot) space – maximum 1258 l
44.43 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Permitted trailer load with brakes (12%) 1150 kg
2535.32 lbs.
Permitted trailer load without brakes 600 kg
1322.77 lbs.
Dimensions
Length 4164 mm
163.94 in.
Width 1748 mm
68.82 in.
Width with mirrors folded 1818 mm
71.57 in.
Width including mirrors 1972 mm
77.64 in.
Height 1527 mm
60.12 in.
Wheelbase 2540 mm
100 in.
Front track 1467 mm
57.76 in.
Rear (Back) track 1461 mm
57.52 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/55 R16
Wheel rims size 16
