Specifications: Peugeot 3008 I (Phase I, 2009) 2.0 HDi (163 Hp) FAP 2009, 2010, 2011, 2012, 2013

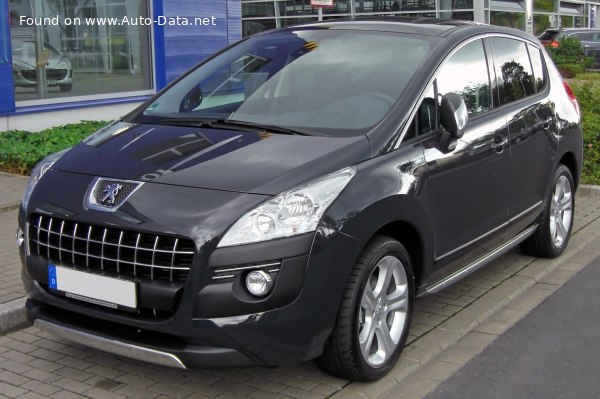

2009 Peugeot 3008 I (Phase I, 2009) - Photo 1

Peugeot 3008 I (Phase I, 2009) 2.0 HDi (163 Hp) FAP – Full specifications
General information
Brand Peugeot
Model 3008
Generation 3008 I (Phase I, 2009)
Modification (Engine) 2.0 HDi (163 Hp) FAP
Start of production 2009 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.6 l/100 km
27.4 US mpg
32.8 UK mpg
11.6 km/l
Fuel consumption (economy) – extra urban 5.5 l/100 km
42.8 US mpg
51.4 UK mpg
18.2 km/l
Fuel consumption (economy) – combined 6.6 l/100 km
35.6 US mpg
42.8 UK mpg
15.2 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 190 km/h
118.06 mph
Emission standard Euro 5
Weight-to-power ratio 9.4 kg/Hp, 105.9 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 220.9 Nm/tonne
Engine specs
Power 163 Hp @ 3750 rpm.
Power per litre 81.6 Hp/l
Torque 340 Nm @ 2000 rpm.
250.77 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code RHH DW10CTED4
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1539 kg
3392.91 lbs.
Max. weight 2100 kg
4629.71 lbs.
Max load 561 kg
1236.79 lbs.
Trunk (boot) space – minimum 432 l
15.26 cu. ft.
Trunk (boot) space – maximum 1241 l
43.83 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4365 mm
171.85 in.
Width 1837 mm
72.32 in.
Height 1635 mm
64.37 in.
Wheelbase 2613 mm
102.87 in.
Minimum turning circle (turning diameter) 11.7 m
38.39 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/50 R17; 235/45 R18
Wheel rims size 17; 18
