Specifications: Peugeot 3008 III (Phase I, 2023) 1.6 (195 Hp) Plug-in Hybrid e-DCS 2024, 2025

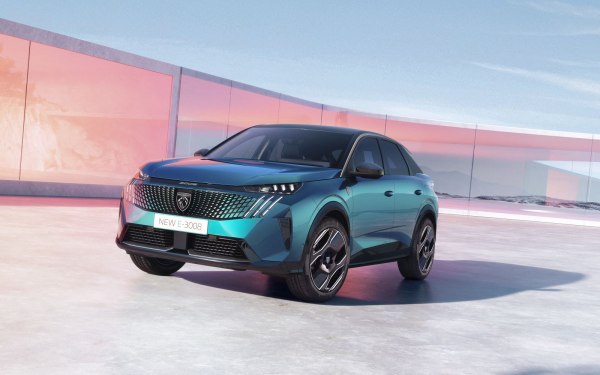

2024 Peugeot 3008 III (Phase I, 2023) - Photo 1

Peugeot 3008 III (Phase I, 2023) 1.6 (195 Hp) Plug-in Hybrid e-DCS – Full specifications
General information
Brand Peugeot
Model 3008
Generation 3008 III (Phase I, 2023)
Modification (Engine) 1.6 (195 Hp) Plug-in Hybrid e-DCS
Start of production June, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 0.9 l/100 km
261.3 US mpg
313.9 UK mpg
111.1 km/l
CO2 emissions (WLTP) 19-21 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 7.8 sec
Acceleration 0 – 62 mph 7.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.4 sec
Maximum speed 220 km/h
136.7 mph
Emission standard Euro 6e
Weight-to-power ratio 9.8 kg/Hp, 102.4 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 157.5 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 17.9 kWh
Battery voltage 360 V
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery weight 160 kg
352.74 lbs.
All-electric range (WLTP) 85-87 km
52.82 – 54.06 mi
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 125 Hp @ 9000 rpm.
Electric motor Torque 118 Nm @ 300-7320 rpm.

87.03 lb.-ft. @ 300-7320 rpm.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 195 Hp
Internal combustion engine specs
Power 150 Hp @ 5500 rpm.
Power per litre 93.9 Hp/l
Torque 300 Nm @ 2000 rpm.
221.27 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code 5G11
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1905 kg
4199.81 lbs.
Max. weight 2420 kg
5335.19 lbs.
Max load 515 kg
1135.38 lbs.
Trunk (boot) space – minimum 520 l
18.36 cu. ft.
Trunk (boot) space – maximum 1480 l
52.27 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%) 1550 kg
3417.17 lbs.
Dimensions
Length 4542 mm
178.82 in.
Width 1895 mm
74.61 in.
Width with mirrors folded 1934 mm
76.14 in.
Width including mirrors 2108 mm
82.99 in.
Height 1641 mm
64.61 in.
Wheelbase 2739 mm
107.83 in.
Front track 1630 mm
64.17 in.
Rear (Back) track 1636 mm
64.41 in.
Front overhang 940 mm
37.01 in.
Rear overhang 863 mm
33.98 in.
Ride height (ground clearance) 198 mm
7.8 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Approach angle 18.7°
Departure angle 25.7°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission e-DCS
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Disc, 365×37 mm
Rear brakes Disc, 356×26 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R19 105V; 235/50 R20 104V
Wheel rims size 19; 20
