Specifications: Peugeot 306 Sedan (facelift 1997) 1.6i (88 Hp) Automatic 1997, 1998, 1999, 2000, 2001, 2002

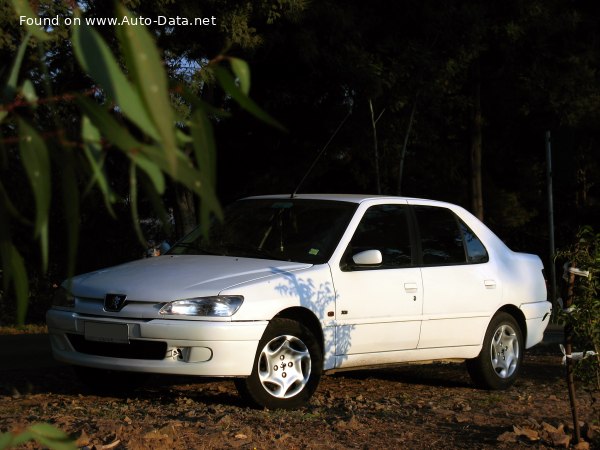

1997 Peugeot 306 Sedan (facelift 1997) - Photo 1

Peugeot 306 Sedan (facelift 1997) 1.6i (88 Hp) Automatic – Full specifications
General information
Brand Peugeot
Model 306
Generation 306 Sedan (facelift 1997)
Modification (Engine) 1.6i (88 Hp) Automatic
Start of production 1997 year
End of production 2002 year
Powertrain Architecture Internal Combustion engine
Body type Sedan
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 10.8 l/100 km
21.8 US mpg
26.2 UK mpg
9.3 km/l
Fuel consumption (economy) – extra urban 6 l/100 km
39.2 US mpg
47.1 UK mpg
16.7 km/l
Fuel consumption (economy) – combined 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 14.1 sec
Acceleration 0 – 62 mph 14.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.4 sec
Maximum speed 174 km/h
108.12 mph
Weight-to-power ratio 12.7 kg/Hp, 78.6 Hp/tonne
Weight-to-torque ratio 8.3 kg/Nm, 120.5 Nm/tonne
Engine specs
Power 88 Hp @ 5600 rpm.
Power per litre 55.5 Hp/l
Torque 135 Nm @ 3000 rpm.
99.57 lb.-ft. @ 3000 rpm.
Engine layout Front, Transverse
Engine Model/Code NFZ TU5JP
Engine displacement 1587 cm3
96.84 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 78.5 mm
3.09 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 9.6:1
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain SOHC
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7 l
7.4 US qt | 6.16 UK qt

Space, Volume and weights
Kerb Weight 1120 kg
2469.18 lbs.
Max. weight 1595 kg
3516.37 lbs.
Max load 475 kg
1047.2 lbs.
Trunk (boot) space – minimum 463 l
16.35 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4267 mm
167.99 in.
Width 1689 mm
66.5 in.
Height 1386 mm
54.57 in.
Wheelbase 2580 mm
101.57 in.
Front track 1454 mm
57.24 in.
Rear (Back) track 1423 mm
56.02 in.
Ride height (ground clearance) 120 mm
4.72 in.
Drag coefficient (Cd) 0.32
Minimum turning circle (turning diameter) 11.0 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Trailing arm
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 185/65 R14 T
Wheel rims size 14
