Specifications: Peugeot 308 CC I (Phase I, 2008) 2.0 HDI (165 Hp) FAP 2010, 2011

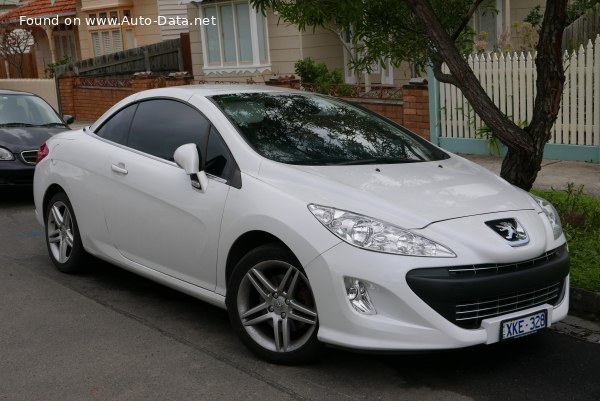

2009 Peugeot 308 CC I (Phase I, 2008) - Photo 1

Peugeot 308 CC I (Phase I, 2008) 2.0 HDI (165 Hp) FAP – Full specifications
General information
Brand Peugeot
Model 308
Generation 308 CC I (Phase I, 2008)
Modification (Engine) 2.0 HDI (165 Hp) FAP
Start of production 2010 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Coupe – Cabriolet
Seats 4
Doors 2
Performance specs
Fuel consumption (economy) – urban 7.5 l/100 km
31.4 US mpg
37.7 UK mpg
13.3 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50 US mpg
60.1 UK mpg
21.3 km/l
Fuel consumption (economy) – combined 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 8.9 sec
Acceleration 0 – 62 mph 8.9 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.5 sec
Maximum speed 209 km/h
129.87 mph
Emission standard Euro 5
Weight-to-power ratio 9.6 kg/Hp, 104.6 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 215.6 Nm/tonne
Engine specs
Power 165 Hp @ 3750 rpm.
Power per litre 82.6 Hp/l
Torque 340 Nm @ 2000 rpm.
250.77 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code RHH DW10CTED4
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.8 l
8.24 US qt | 6.86 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1577 kg
3476.69 lbs.
Max. weight 2025 kg
4464.36 lbs.
Max load 448 kg
987.67 lbs.
Trunk (boot) space – minimum 226 l
7.98 cu. ft.
Trunk (boot) space – maximum 403 l
14.23 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4440 mm
174.8 in.
Width 1872 mm
73.7 in.
Height 1426 mm
56.14 in.
Wheelbase 2605 mm
102.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/45 R17; 225/40 R18
Wheel rims size 17; 18
