Specifications: Peugeot 308 I (Phase II, 2011) 1.6 16V THP (156 Hp) Automatic 2011, 2012, 2013

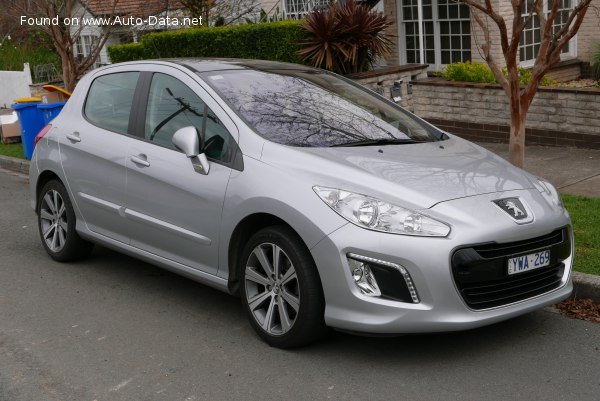

2011 Peugeot 308 I (Phase II, 2011) - Photo 1

Peugeot 308 I (Phase II, 2011) 1.6 16V THP (156 Hp) Automatic – Full specifications
General information
Brand Peugeot
Model 308
Generation 308 I (Phase II, 2011)
Modification (Engine) 1.6 16V THP (156 Hp) Automatic
Start of production 2011 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 11.2 l/100 km
21 US mpg
25.2 UK mpg
8.9 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
Fuel consumption (economy) – combined (NEDC) 7.7 l/100 km
30.5 US mpg
36.7 UK mpg
13 km/l
CO2 emissions (NEDC) 176 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.1 sec
Acceleration 0 – 62 mph 9.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 8.6 sec
Maximum speed 212 km/h
131.73 mph
Emission standard Euro 5
Weight-to-power ratio 8.9 kg/Hp, 112.9 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 173.7 Nm/tonne
Engine specs
Power 156 Hp @ 6000 rpm.
Power per litre 97.6 Hp/l
Torque 240 Nm @ 1400 rpm.
177.01 lb.-ft. @ 1400 rpm.
Engine layout Front, Transverse
Engine Model/Code EP6CDT
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.8 mm
3.38 in.
Compression ratio 10.5:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 1382 kg
3046.79 lbs.
Max. weight 1870 kg
4122.64 lbs.
Max load 488 kg
1075.86 lbs.
Trunk (boot) space – minimum 348 l
12.29 cu. ft.
Trunk (boot) space – maximum 1201 l
42.41 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1650 kg
3637.63 lbs.
Permitted trailer load without brakes 720 kg
1587.33 lbs.
Permitted towbar download 70 kg
154.32 lbs.
Dimensions
Length 4276 mm
168.35 in.
Width 1815 mm
71.46 in.
Width including mirrors 2038 mm
80.24 in.
Height 1498 mm
58.98 in.
Wheelbase 2608 mm
102.68 in.
Front track 1526 mm
60.08 in.
Rear (Back) track 1521 mm
59.88 in.
Front overhang 926 mm
36.46 in.
Rear overhang 742 mm
29.21 in.
Drag coefficient (Cd) 0.28
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Elastic beam
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 225/45 R17; 225/40 R18
Wheel rims size 7.5J x 17; 7.5J x 18
