Specifications: Peugeot 308 SW I (Phase I, 2008) Sport 1.6 HDi (109 Hp) 2008, 2009, 2010, 2011

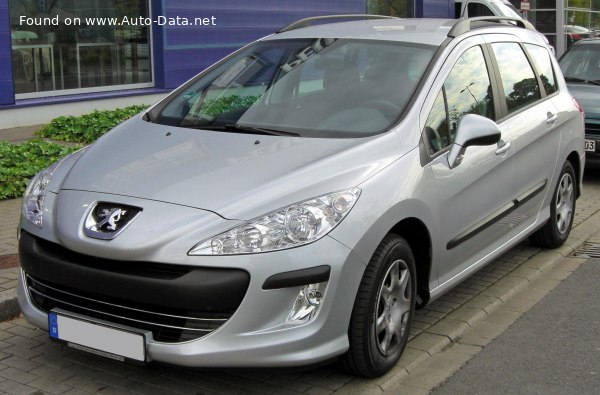

2008 Peugeot 308 SW I (Phase I, 2008) - Photo 1

Peugeot 308 SW I (Phase I, 2008) Sport 1.6 HDi (109 Hp) – Full specifications
General information
Brand Peugeot
Model 308
Generation 308 SW I (Phase I, 2008)
Modification (Engine) Sport 1.6 HDi (109 Hp)
Start of production 2008 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 6.3-6.8 l/100 km
37.3 – 34.6 US mpg
44.8 – 41.5 UK mpg
15.9 – 14.7 km/l
Fuel consumption (economy) – extra urban (NEDC) 4-4.4 l/100 km
58.8 – 53.5 US mpg
70.6 – 64.2 UK mpg
25 – 22.7 km/l
Fuel consumption (economy) – combined (NEDC) 4.9-5.3 l/100 km
48 – 44.4 US mpg
57.6 – 53.3 UK mpg
20.4 – 18.9 km/l
CO2 emissions (NEDC) 130-139 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.5 sec
Acceleration 0 – 62 mph 12.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.9 sec
Maximum speed 185 km/h
114.95 mph
Emission standard Euro 4
Weight-to-power ratio 13.7 kg/Hp, 72.9 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 160.5 Nm/tonne
Engine specs
Power 109 Hp @ 4000 rpm.
Power per litre 69.9 Hp/l
Torque 240 Nm @ 1750 rpm.
177.01 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code 9HZ DV6TED4
Engine displacement 1560 cm3
95.2 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 88.3 mm
3.48 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 3.75 l
3.96 US qt | 3.3 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6 l
6.34 US qt | 5.28 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1495 kg
3295.91 lbs.
Max. weight 2150 kg
4739.94 lbs.
Max load 655 kg
1444.03 lbs.
Trunk (boot) space – minimum 570 l
20.13 cu. ft.
Trunk (boot) space – maximum 1736 l
61.31 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1400 kg
3086.47 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4500 mm
177.17 in.
Width 1815 mm
71.46 in.
Width including mirrors 2038 mm
80.24 in.
Height 1564 mm
61.57 in.
Wheelbase 2708 mm
106.61 in.
Front track 1526-1536 mm
60.08 – 60.47 in.
Rear (Back) track 1521-1531 mm
59.88 – 60.28 in.
Front overhang 926 mm
36.46 in.
Rear overhang 866 mm
34.09 in.
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 205/55 R16; 225/45 R17
Wheel rims size 7J x 16; 7.5J x 17
