Specifications: Peugeot 308 SW I (Phase II, 2011) 1.6 16V THP (156 Hp) Automatic 2011, 2012, 2013, 2014

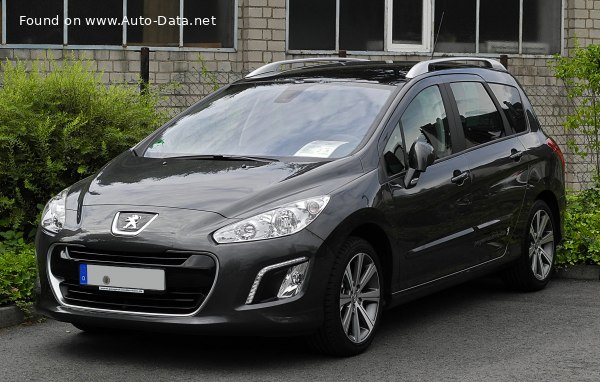

2011 Peugeot 308 SW I (Phase II, 2011) - Photo 1

Peugeot 308 SW I (Phase II, 2011) 1.6 16V THP (156 Hp) Automatic – Full specifications
General information
Brand Peugeot
Model 308
Generation 308 SW I (Phase II, 2011)
Modification (Engine) 1.6 16V THP (156 Hp) Automatic
Start of production 2011 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – urban (NEDC) 11 l/100 km
21.4 US mpg
25.7 UK mpg
9.1 km/l
Fuel consumption (economy) – extra urban (NEDC) 5.8 l/100 km
40.6 US mpg
48.7 UK mpg
17.2 km/l
Fuel consumption (economy) – combined (NEDC) 7.8 l/100 km
30.2 US mpg
36.2 UK mpg
12.8 km/l
CO2 emissions (NEDC) 180 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.7 sec
Acceleration 0 – 62 mph 9.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.2 sec
Maximum speed 210 km/h
130.49 mph
Emission standard Euro 5
Weight-to-power ratio 9.9 kg/Hp, 101.2 Hp/tonne
Weight-to-torque ratio 6.4 kg/Nm, 155.7 Nm/tonne
Engine specs
Power 156 Hp @ 6000 rpm.
Power per litre 97.6 Hp/l
Torque 240 Nm @ 1400 rpm.
177.01 lb.-ft. @ 1400 rpm.
Engine layout Front, Transverse
Engine Model/Code 5FV EP6CDT
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 77 mm
3.03 in.
Piston Stroke 85.8 mm
3.38 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.2 l
6.55 US qt | 5.46 UK qt

Space, Volume and weights
Kerb Weight 1541 kg
3397.32 lbs.
Max. weight 2160 kg
4761.98 lbs.
Max load 619 kg
1364.66 lbs.
Trunk (boot) space – minimum 573 l
20.24 cu. ft.
Trunk (boot) space – maximum 1736 l
61.31 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Max. roof load 75 kg
165.35 lbs.
Permitted trailer load with brakes (12%) 1350 kg
2976.24 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 60 kg
132.28 lbs.
Dimensions
Length 4500 mm
177.17 in.
Width 1815 mm
71.46 in.
Width including mirrors 2038 mm
80.24 in.
Height 1555 mm
61.22 in.
Wheelbase 2708 mm
106.61 in.
Front track 1526 mm
60.08 in.
Rear (Back) track 1521 mm
59.88 in.
Front overhang 926 mm
36.46 in.
Rear overhang 866 mm
34.09 in.
Minimum turning circle (turning diameter) 10.7 m
35.1 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Coil spring, Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/45 R17
Wheel rims size 7.5J x 17
