Specifications: Peugeot 308 SW III (Phase II, 2025) 1.6 (195 Hp) Plug-in Hybrid e-DCS 2025

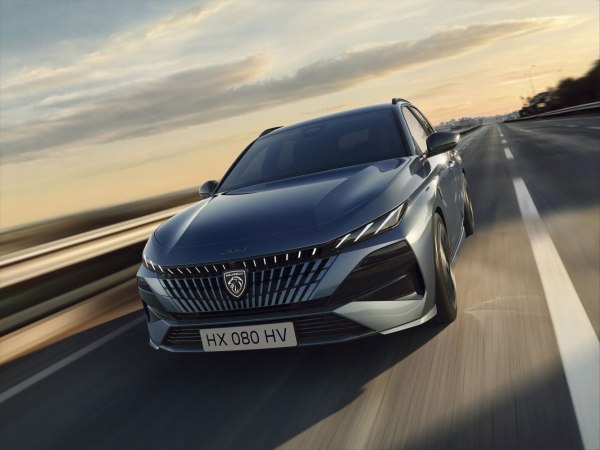

2025 Peugeot 308 SW III (Phase II, 2025) - Photo 1

Peugeot 308 SW III (Phase II, 2025) 1.6 (195 Hp) Plug-in Hybrid e-DCS – Full specifications
General information
Brand Peugeot
Model 308
Generation 308 SW III (Phase II, 2025)
Modification (Engine) 1.6 (195 Hp) Plug-in Hybrid e-DCS
Start of production August, 2025 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 2.5 l/100 km
94.1 US mpg
113 UK mpg
40 km/l
CO2 emissions (WLTP) 57 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 8 sec
Acceleration 0 – 62 mph 8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.6 sec
Maximum speed 225 km/h
139.81 mph
Emission standard Euro 6e
Weight-to-power ratio 8.6 kg/Hp, 116.4 Hp/tonne
Weight-to-torque ratio 4.7 kg/Nm, 214.9 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 17.2 kWh
Battery voltage 400 V
Battery technology Lithium-ion (Li-Ion)
Battery weight 141 kg
310.85 lbs.
Battery location Below the floor, under the rear seats
All-electric range (WLTP) 85 km
52.82 mi
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 125 Hp @ 2500 rpm.
Electric motor Torque 118 Nm @ 300-7320 rpm.

87.03 lb.-ft. @ 300-7320 rpm.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
System power 195 Hp
System torque 360 Nm
265.52 lb.-ft.
Internal combustion engine specs
Power 150 Hp @ 5500 rpm.
Power per litre 93.9 Hp/l
Torque 250 Nm @ 1750 rpm.
184.39 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code 5G11
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1675 kg
3692.74 lbs.
Max. weight 2185 kg
4817.1 lbs.
Max load 510 kg
1124.36 lbs.
Trunk (boot) space – minimum 467 l
16.49 cu. ft.
Fuel tank capacity 40 l
10.57 US gal | 8.8 UK gal
Permitted trailer load with brakes (12%) 1315 kg
2899.08 lbs.
Dimensions
Length 4640 mm
182.68 in.
Width 1850 mm
72.83 in.
Height 1480 mm
58.27 in.
Wheelbase 2730 mm
107.48 in.
Drag coefficient (Cd) 0.29
Minimum turning circle (turning diameter) 11.13 m
36.52 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission e-DCS
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs, 330×30 mm
Rear brakes Disc, 290×12 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/45 R17 V; 225/40 R18 Y
Wheel rims size 17; 18
