Specifications: Peugeot 309 (10C,10A) 1.6 (75 Hp) 1985, 1986, 1987

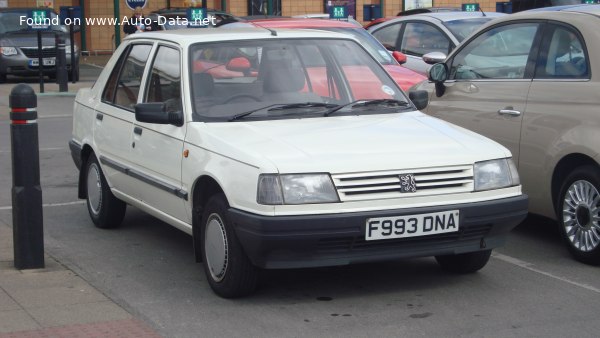

1985 Peugeot 309 (10C,10A) - Photo 1

Peugeot 309 (10C,10A) 1.6 (75 Hp) – Full specifications
General information
Brand Peugeot
Model 309
Generation 309 (10C,10A)
Modification (Engine) 1.6 (75 Hp)
Start of production 1985 year
End of production 1987 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.4 l/100 km
22.6 US mpg
27.2 UK mpg
9.6 km/l
Fuel consumption (economy) – extra urban 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.4 sec
Acceleration 0 – 62 mph 13.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.7 sec
Maximum speed 167 km/h
103.77 mph
Weight-to-power ratio 11.7 kg/Hp, 85.2 Hp/tonne
Weight-to-torque ratio 7 kg/Nm, 142 Nm/tonne
Engine specs
Power 75 Hp @ 5600 rpm.
Power per litre 47.5 Hp/l
Torque 125 Nm @ 2800 rpm.
92.2 lb.-ft. @ 2800 rpm.
Engine layout Front, Transverse
Engine Model/Code B1A XU51C
Engine displacement 1580 cm3
96.42 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 73 mm
2.87 in.
Compression ratio 8.65:1
Number of valves per cylinder 2
Fuel injection system Carburettor
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.5 l
7.93 US qt | 6.6 UK qt

Space, Volume and weights
Kerb Weight 880 kg
1940.07 lbs.
Max. weight 1310 kg
2888.06 lbs.
Max load 430 kg
947.99 lbs.
Trunk (boot) space – minimum 397 l
14.02 cu. ft.
Trunk (boot) space – maximum 1279 l
45.17 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%) 800 kg
1763.7 lbs.
Dimensions
Length 4051 mm
159.49 in.
Width 1628 mm
64.09 in.
Height 1380 mm
54.33 in.
Wheelbase 2469 mm
97.2 in.
Front track 1408 mm
55.43 in.
Rear (Back) track 1376 mm
54.17 in.
Front overhang 753 mm
29.65 in.
Rear overhang 829 mm
32.64 in.
Drag coefficient (Cd) 0.33
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Steering type Steering rack and pinion
Tires size 165/70 R13
Wheel rims size 13
