Specifications: Peugeot 309 (3C,3A facelift 1989) 3-door 1.9 GTI 16V (158 Hp) 1989, 1990

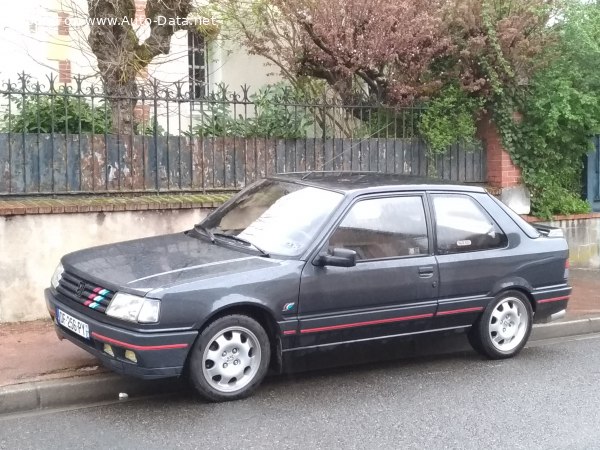

1989 Peugeot 309 (3C,3A facelift 1989) 3-door - Photo 1

Peugeot 309 (3C,3A facelift 1989) 3-door 1.9 GTI 16V (158 Hp) – Full specifications
General information
Brand Peugeot
Model 309
Generation 309 (3C,3A facelift 1989) 3-door
Modification (Engine) 1.9 GTI 16V (158 Hp)
Start of production 1989 year
End of production 1990 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel consumption (economy) – extra urban 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 7.8 sec
Acceleration 0 – 62 mph 7.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.4 sec
Maximum speed 220 km/h
136.7 mph
Weight-to-power ratio 6 kg/Hp, 166.7 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 186.7 Nm/tonne
Engine specs
Power 158 Hp @ 6500 rpm.
Power per litre 82.9 Hp/l
Torque 177 Nm @ 5000 rpm.
130.55 lb.-ft. @ 5000 rpm.
Engine layout Front, Transverse
Engine Model/Code D6C XU9J4
Engine displacement 1905 cm3
116.25 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 88 mm
3.46 in.
Compression ratio 10.4:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.5 l
7.93 US qt | 6.6 UK qt

Space, Volume and weights
Kerb Weight 948 kg
2089.98 lbs.
Max. weight 1400 kg
3086.47 lbs.
Max load 452 kg
996.49 lbs.
Trunk (boot) space – minimum 397 l
14.02 cu. ft.
Trunk (boot) space – maximum 1279 l
45.17 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%) 900 kg
1984.16 lbs.
Dimensions
Length 4051 mm
159.49 in.
Width 1628 mm
64.09 in.
Height 1380 mm
54.33 in.
Wheelbase 2469 mm
97.2 in.
Front track 1405 mm
55.31 in.
Rear (Back) track 1380 mm
54.33 in.
Front overhang 753 mm
29.65 in.
Rear overhang 829 mm
32.64 in.
Drag coefficient (Cd) 0.34
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/55 R15
