Specifications: Peugeot 406 Break (Phase I, 1996) 1.8 (90 Hp) 1997, 1998, 1999

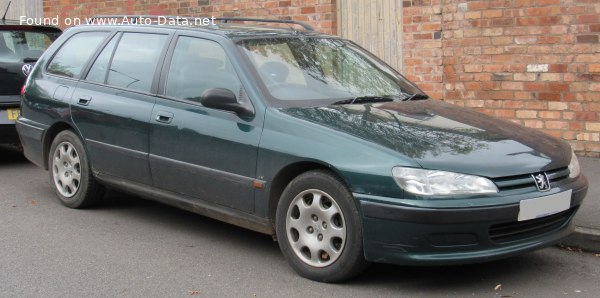

1996 Peugeot 406 Break (Phase I, 1996) - Photo 1

Peugeot 406 Break (Phase I, 1996) 1.8 (90 Hp) – Full specifications
General information
Brand Peugeot
Model 406
Generation 406 Break (Phase I, 1996)
Modification (Engine) 1.8 (90 Hp)
Start of production 1997 year
End of production 1999 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.8 l/100 km
19.9 US mpg
23.9 UK mpg
8.5 km/l
Fuel consumption (economy) – extra urban 6.4 l/100 km
36.8 US mpg
44.1 UK mpg
15.6 km/l
Fuel consumption (economy) – combined 8.4 l/100 km
28 US mpg
33.6 UK mpg
11.9 km/l
CO2 emissions 205 g/km
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 14.4 kg/Hp, 69.2 Hp/tonne
Weight-to-torque ratio 8.8 kg/Nm, 113.1 Nm/tonne
Engine specs
Power 90 Hp @ 5000 rpm.
Power per litre 51.1 Hp/l
Torque 147 Nm @ 2600 rpm.
108.42 lb.-ft. @ 2600 rpm.
Engine layout Front, Transverse
Engine Model/Code LFX XU7JB
Engine displacement 1761 cm3
107.46 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 83 mm
3.27 in.
Piston Stroke 81.4 mm
3.2 in.
Number of valves per cylinder 2
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain OHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1300 kg
2866.01 lbs.
Max. weight 1950 kg
4299.01 lbs.
Max load 650 kg
1433 lbs.
Permitted trailer load with brakes (12%) 1150 kg
2535.32 lbs.
Dimensions
Length 4740 mm
186.61 in.
Width 1760 mm
69.29 in.
Height 1505 mm
59.25 in.
Wheelbase 2700 mm
106.3 in.
Front track 1500 mm
59.06 in.
Rear (Back) track 1480 mm
58.27 in.
Front overhang 937 mm
36.89 in.
Rear overhang 1103 mm
43.43 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/60 R15
Wheel rims size 15
