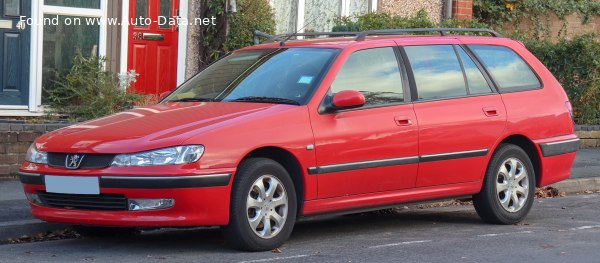

1999 Peugeot 406 Break (Phase II, 1999) - Photo 1

Peugeot 406 Break (Phase II, 1999) 2.2 HDi (133 Hp) – Full specifications
General information
Brand Peugeot
Model 406
Generation 406 Break (Phase II, 1999)
Modification (Engine) 2.2 HDi (133 Hp)
Start of production 2000 year
End of production 2004 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.8 l/100 km
26.7 US mpg
32.1 UK mpg
11.4 km/l
Fuel consumption (economy) – extra urban 5.1 l/100 km
46.1 US mpg
55.4 UK mpg
19.6 km/l
Fuel consumption (economy) – combined 6.5 l/100 km
36.2 US mpg
43.5 UK mpg
15.4 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.3 sec
Acceleration 0 – 62 mph 11.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.7 sec
Maximum speed 201 km/h
124.9 mph
Weight-to-power ratio 11 kg/Hp, 91.1 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 215.1 Nm/tonne
Engine specs
Power 133 Hp @ 4000 rpm.
Power per litre 61 Hp/l
Torque 314 Nm @ 2000 rpm.
231.59 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code 4HX DW12TED4
Engine displacement 2179 cm3
132.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 85 mm
3.35 in.
Piston Stroke 96 mm
3.78 in.
Compression ratio 18:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.7 l
10.25 US qt | 8.53 UK qt

Space, Volume and weights
Kerb Weight 1460 kg
3218.75 lbs.
Max. weight 2110 kg
4651.75 lbs.
Max load 650 kg
1433 lbs.
Trunk (boot) space – minimum 525 l
18.54 cu. ft.
Trunk (boot) space – maximum 1740 l
61.45 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Dimensions
Length 4735 mm
186.42 in.
Width 1765 mm
69.49 in.
Height 1500 mm
59.06 in.
Wheelbase 2700 mm
106.3 in.
Front track 1500 mm
59.06 in.
Rear (Back) track 1480 mm
58.27 in.
Minimum turning circle (turning diameter) 11.95 m
39.21 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 195/65 R15
Wheel rims size 15
