Specifications: Peugeot 5008 I (Phase I, 2009) 2.0 HDI (163 Hp) FAP Automatic 7 seats 2009, 2010, 2011, 2012, 2013

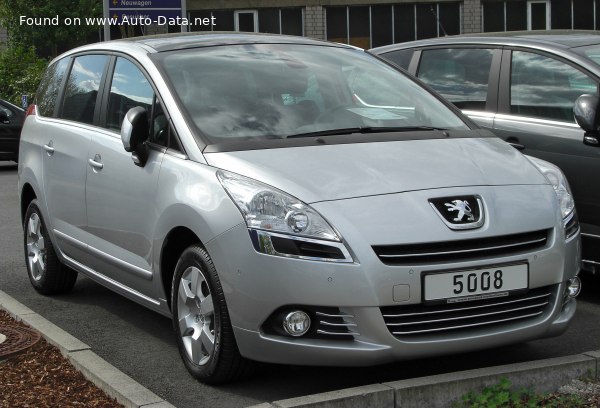

2009 Peugeot 5008 I (Phase I, 2009) - Photo 1

Peugeot 5008 I (Phase I, 2009) 2.0 HDI (163 Hp) FAP Automatic 7 seats – Full specifications
General information
Brand Peugeot
Model 5008
Generation 5008 I (Phase I, 2009)
Modification (Engine) 2.0 HDI (163 Hp) FAP Automatic 7 seats
Start of production 2009 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type MPV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 8.8 l/100 km
26.7 US mpg
32.1 UK mpg
11.4 km/l
Fuel consumption (economy) – extra urban 5.7 l/100 km
41.3 US mpg
49.6 UK mpg
17.5 km/l
Fuel consumption (economy) – combined 6.8 l/100 km
34.6 US mpg
41.5 UK mpg
14.7 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.5 sec
Acceleration 0 – 62 mph 10.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10 sec
Maximum speed 190 km/h
118.06 mph
Emission standard Euro 5
Weight-to-power ratio 9.9 kg/Hp, 100.7 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 210 Nm/tonne
Engine specs
Power 163 Hp @ 3750 rpm.
Power per litre 81.6 Hp/l
Torque 340 Nm @ 2000 rpm.
250.77 lb.-ft. @ 2000 rpm.
Engine layout Front, Transverse
Engine Model/Code RHH DW10CTED4
Engine displacement 1997 cm3
121.86 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 5 l
5.28 US qt | 4.4 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.6 l
9.09 US qt | 7.57 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1619 kg
3569.28 lbs.
Max. weight 2330 kg
5136.77 lbs.
Max load 711 kg
1567.49 lbs.
Trunk (boot) space – minimum 679 l
23.98 cu. ft.
Trunk (boot) space – maximum 1754 l
61.94 cu. ft.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4529 mm
178.31 in.
Width 1888 mm
74.33 in.
Height 1622 mm
63.86 in.
Wheelbase 2727 mm
107.36 in.
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/55 R16; 215/50 R17; 215/45 R18
Wheel rims size 16; 17; 18
