Specifications: Peugeot 5008 II (Phase II, 2020) 1.2 PureTech (130 Hp) Automatic 2020, 2021, 2022, 2023, 2024

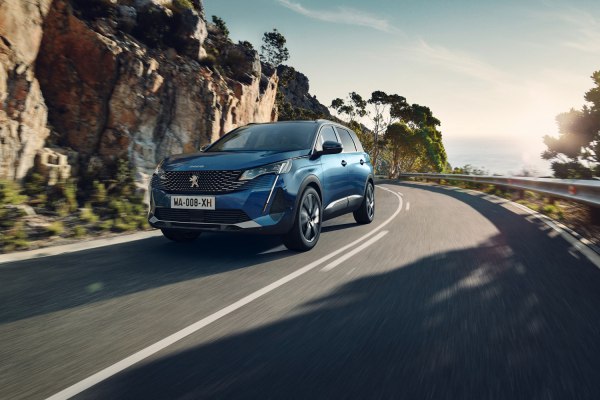

2020 Peugeot 5008 II (Phase II, 2020) - Photo 1

Peugeot 5008 II (Phase II, 2020) 1.2 PureTech (130 Hp) Automatic – Full specifications
General information
Brand Peugeot
Model 5008
Generation 5008 II (Phase II, 2020)
Modification (Engine) 1.2 PureTech (130 Hp) Automatic
Start of production September, 2020 year
End of production March, 2024 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7
Doors 5
Performance specs
Fuel consumption at Low speed (WLTP) 7.9-8.4 l/100 km
29.8 – 28 US mpg
35.8 – 33.6 UK mpg
12.7 – 11.9 km/l
Fuel consumption at Medium speed (WLTP) 6.0-7.0 l/100 km
39.2 – 33.6 US mpg
47.1 – 40.4 UK mpg
16.7 – 14.3 km/l
Fuel consumption at high speed (WLTP) 5.2-6.2 l/100 km
45.2 – 37.9 US mpg
54.3 – 45.6 UK mpg
19.2 – 16.1 km/l
Fuel consumption at very high speed (WLTP) 6.4-8.1 l/100 km
36.8 – 29 US mpg
44.1 – 34.9 UK mpg
15.6 – 12.3 km/l
Combined fuel consumption (WLTP) 6.1-7.3 l/100 km
38.6 – 32.2 US mpg
46.3 – 38.7 UK mpg
16.4 – 13.7 km/l
CO2 emissions (WLTP) 139 – 165 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.2 sec
Acceleration 0 – 62 mph 10.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.7 sec
Maximum speed 188 km/h
116.82 mph
Emission standard Euro 6
Weight-to-power ratio 11 kg/Hp, 90.9 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 160.8 Nm/tonne
Engine specs
Power 130 Hp @ 5500 rpm.
Power per litre 108.4 Hp/l
Torque 230 Nm @ 1750 rpm.
169.64 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code HNS EB2ADTS
Engine displacement 1199 cm3
73.17 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 90.5 mm
3.56 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 3.5 l
3.7 US qt | 3.08 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1430 kg
3152.61 lbs.
Max. weight 2160 kg
4761.98 lbs.
Max load 730 kg
1609.37 lbs.
Trunk (boot) space – minimum 702 l
24.79 cu. ft.
Trunk (boot) space – maximum 2150 l
75.93 cu. ft.
Fuel tank capacity 56 l
14.79 US gal | 12.32 UK gal
Permitted trailer load with brakes (12%) 1100 kg
2425.08 lbs.
Permitted towbar download 70 kg
154.32 lbs.
Dimensions
Length 4641 mm
182.72 in.
Width 1844 mm
72.6 in.
Height 1646 mm
64.8 in.
Wheelbase 2840 mm
111.81 in.
Front track 1601 mm
63.03 in.
Rear (Back) track 1610 mm
63.39 in.
Front overhang 926 mm
36.46 in.
Rear overhang 875 mm
34.45 in.
Ride height (ground clearance) 236 mm
9.29 in.
Minimum turning circle (turning diameter) 11.20 m
36.75 ft.
Approach angle 19°
Departure angle 28°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission
Front suspension Coil spring, Independent type McPherson
Rear suspension Semi-independent, coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/65 R17; 225/55 R18; 205/55 R19
Wheel rims size 17; 18; 19
