Specifications: Peugeot 5008 III (Phase I, 2024) 1.6 (196 Hp) Plug-in Hybrid e-DCS 2024, 2025

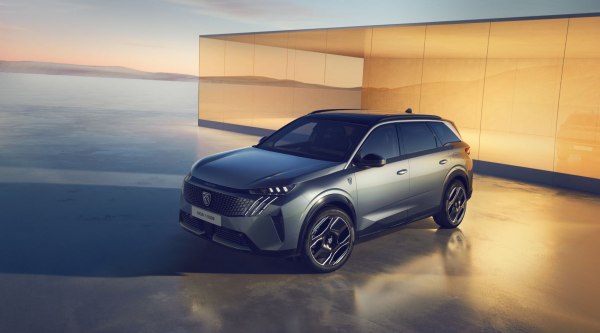

2024 Peugeot 5008 III (Phase I, 2024) - Photo 1

Peugeot 5008 III (Phase I, 2024) 1.6 (196 Hp) Plug-in Hybrid e-DCS – Full specifications
General information
Brand Peugeot
Model 5008
Generation 5008 III (Phase I, 2024)
Modification (Engine) 1.6 (196 Hp) Plug-in Hybrid e-DCS
Start of production March, 2024 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 7
Doors 5
Performance specs
CO2 emissions (WLTP) 23 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 8.3 sec
Acceleration 0 – 62 mph 8.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.9 sec
Maximum speed 215 km/h
133.59 mph
Weight-to-power ratio 10.4 kg/Hp, 95.7 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 146.5 Nm/tonne
Electric cars and hybrids specs
Net (usable) battery capacity 17.9 kWh
Battery voltage 360 V
Battery technology Lithium nickel manganese cobalt oxides (Li-NMC)
Battery weight 160 kg
352.74 lbs.
Battery location Below the floor, under the rear seats
All-electric range (WLTP) 82 km
50.95 mi
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 125 Hp
Electric motor Torque 115 Nm

84.82 lb.-ft.
Electric motor location Between the combustion engine and the transmission
System power 196 Hp @ 6000 rpm.
Internal combustion engine specs
Power 150 Hp @ 6000 rpm.
Power per litre 93.9 Hp/l
Torque 300 Nm @ 2500 rpm.
221.27 lb.-ft. @ 2500 rpm.
Engine layout Front, Transverse
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2048 kg
4515.07 lbs.
Max. weight 2700 kg
5952.48 lbs.
Max load 652 kg
1437.41 lbs.
Trunk (boot) space – minimum 259 l
9.15 cu. ft.
Trunk (boot) space – maximum 1815 l
64.1 cu. ft.
Permitted trailer load with brakes (12%) 1300 kg
2866.01 lbs.
Dimensions
Length 4791 mm
188.62 in.
Width 1895 mm
74.61 in.
Height 1694 mm
66.69 in.
Wheelbase 2901 mm
114.21 in.
Front track 1630 mm
64.17 in.
Rear (Back) track 1636 mm
64.41 in.
Front overhang 940 mm
37.01 in.
Rear overhang 950 mm
37.4 in.
Ride height (ground clearance) 209 mm
8.23 in.
Minimum turning circle (turning diameter) 11.2 m
36.75 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox 7 gears, automatic transmission e-DCS
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 365×37 mm
Rear brakes Ventilated discs, 356×26 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R19; 235/50 R20
Wheel rims size 19; 20
