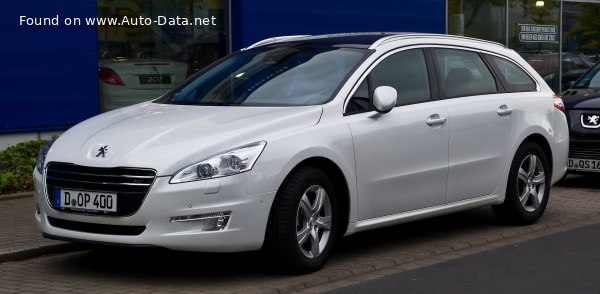

2011 Peugeot 508 I SW (Phase I, 2010) - Photo 1

Peugeot 508 I SW (Phase I, 2010) 1.6 THP (156 Hp) Automatic – Full specifications
General information
Brand Peugeot
Model 508
Generation 508 I SW (Phase I, 2010)
Modification (Engine) 1.6 THP (156 Hp) Automatic
Start of production 2010 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.4 l/100 km
22.6 US mpg
27.2 UK mpg
9.6 km/l
Fuel consumption (economy) – extra urban 5.5 l/100 km
42.8 US mpg
51.4 UK mpg
18.2 km/l
Fuel consumption (economy) – combined 7.3 l/100 km
32.2 US mpg
38.7 UK mpg
13.7 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 9.5 sec
Acceleration 0 – 62 mph 9.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9 sec
Maximum speed 217 km/h
134.84 mph
Emission standard Euro 5
Weight-to-power ratio 9.2 kg/Hp, 109.1 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 167.8 Nm/tonne
Engine specs
Power 156 Hp @ 6000 rpm.
Power per litre 97.6 Hp/l
Torque 240 Nm @ 1400-4000 rpm.
177.01 lb.-ft. @ 1400-4000 rpm.
Engine layout Front, Transverse
Engine Model/Code 5FV EP6CDT
Engine displacement 1598 cm3
97.52 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4.25 l
4.49 US qt | 3.74 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.4 l
6.76 US qt | 5.63 UK qt

Space, Volume and weights
Kerb Weight 1430 kg
3152.61 lbs.
Max. weight 2100 kg
4629.71 lbs.
Max load 670 kg
1477.1 lbs.
Trunk (boot) space – maximum 560 l
19.78 cu. ft.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Dimensions
Length 4813 mm
189.49 in.
Width 1920 mm
75.59 in.
Height 1476 mm
58.11 in.
Wheelbase 2817 mm
110.91 in.
Minimum turning circle (turning diameter) 10.9 m
35.76 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 215/60 R16; 215/55 R17; 235/45 R18
Wheel rims size 16; 17; 18
