Specifications: Peugeot 508 II (Phase II, 2023) 1.2 PureTech (130 Hp) EAT8 2023, 2024

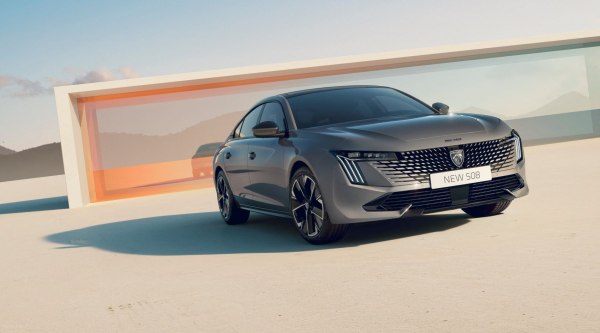

2024 Peugeot 508 II (Phase II, 2023) - Photo 1

Peugeot 508 II (Phase II, 2023) 1.2 PureTech (130 Hp) EAT8 – Full specifications
General information
Brand Peugeot
Model 508
Generation 508 II (Phase II, 2023)
Modification (Engine) 1.2 PureTech (130 Hp) EAT8
Start of production April, 2023 year
End of production May, 2024 year
Powertrain Architecture Internal Combustion engine
Body type Fastback
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 5.9-6.3 l/100 km
39.9 – 37.3 US mpg
47.9 – 44.8 UK mpg
16.9 – 15.9 km/l
CO2 emissions (WLTP) 131-141 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10 sec
Acceleration 0 – 62 mph 10 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.5 sec
Maximum speed 211 km/h
131.11 mph
Emission standard Euro 6
Weight-to-power ratio 11 kg/Hp, 91.2 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 161.3 Nm/tonne
Engine specs
Power 130 Hp @ 5500 rpm.
Power per litre 108.4 Hp/l
Torque 230 Nm @ 1750 rpm.
169.64 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine displacement 1199 cm3
73.17 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 75 mm
2.95 in.
Piston Stroke 90.5 mm
3.56 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1426 kg
3143.79 lbs.
Max. weight 1960 kg
4321.06 lbs.
Max load 534 kg
1177.27 lbs.
Trunk (boot) space – minimum 487 l
17.2 cu. ft.
Trunk (boot) space – maximum 1537 l
54.28 cu. ft.
Permitted trailer load with brakes (12%) 1340 kg
2954.19 lbs.
Dimensions
Length 4750 mm
187.01 in.
Width 1859 mm
73.19 in.
Width including mirrors 2079 mm
81.85 in.
Height 1403 mm
55.24 in.
Wheelbase 2793 mm
109.96 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission EAT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 304×28 mm
Rear brakes Disc, 268×12 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/55 R17; 235/45 R18; 235/40 R19
Wheel rims size 17; 18; 19
